DTC B1011-95; SAS Control Module Connectors Are Poorly Connected: Notes

DETECTION CONDITION & POSSIBLE CAUSE

System malfunction location	SAS control module connectors are poorly connected

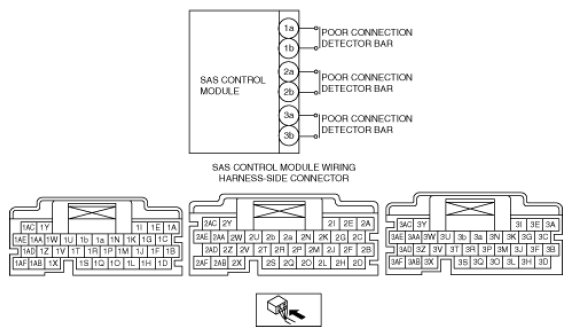

Detection condition	WARNING: Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure. No continuity between poor connection detector bar terminals of the SAS control module
Fail-safe	Not applicable
Possible cause	SAS control module connectors are poorly connected SAS control module connector malfunction SAS control module malfunction
