Brake Pipe Installation Note

Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.
Vehicles without Mazda Radar Cruise Control (MRCC) system and Smart City Brake Support (SCBS)

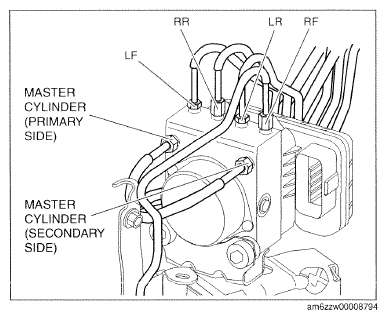

Fig 1: Locating Master Cylinder (Primary And Secondary Side)
Courtesy of MAZDA MOTORS CORP.

Vehicles with Mazda Radar Cruise Control (MRCC) system or Smart City Brake Support (SCBS)

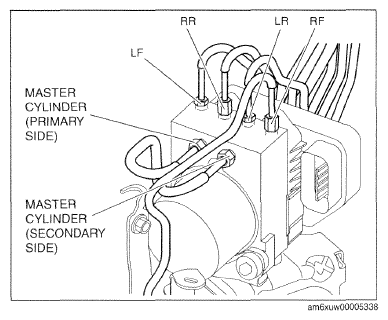

Fig 2: Locating Alignment Marks (Vehicles With Mazda Radar Cruise Control)
Courtesy of MAZDA MOTORS CORP.
Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.
