Resistance Inspection: Notes

  1. Remove the DSC OFF switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
  2. Verify that the resistance between DSC OFF switch terminals B and C is as indicated in the table.

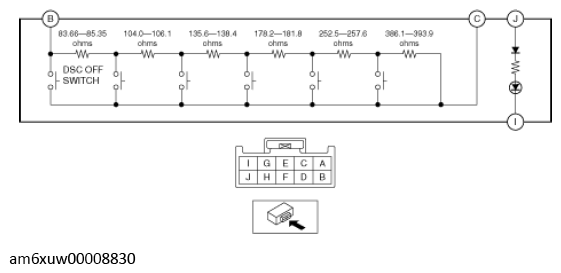

Fig 1: Cluster Switch Circuit Diagram
G11546497Courtesy of MAZDA MOTORS CORP.
