Evaporator Temperature Sensor Assembly Note

Assemble the evaporator temperature sensor as shown in the figure.

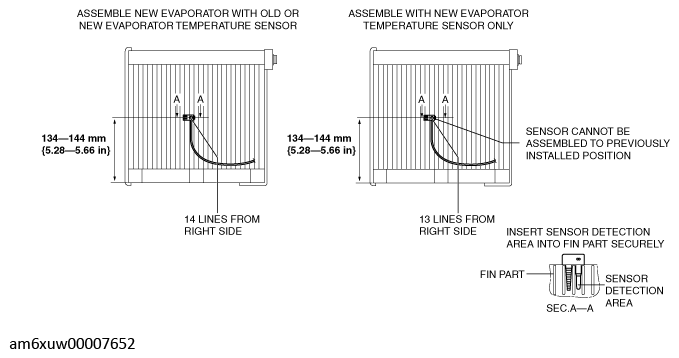

Fig 1: Locating Dimension Between Evaporator Temperature Sensor And Lines From Right Side
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When installing the evaporator temperature sensor without replacing the evaporator, assemble the evaporator temperature sensor with the installation position slid to the left of the previous position by 1 line. If the evaporator temperature sensor is assembled to the previously installed position, it may not function due to poor contact of the fin surface with the sensor detection area caused by fin deformation.
NOTE:
- If an evaporator temperature sensor cannot be correctly positioned on the evaporator, replace the evaporator.
