Connector Disconnect Note

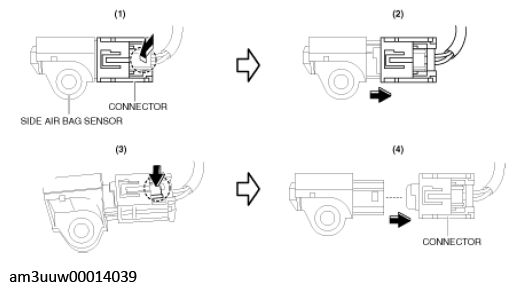

  1. Press the area (1) indicated by the arrow and slide it as shown in the figure (2).
    Fig 1: Disconnecting Air Bag System Warning Light
    G11529605Courtesy of MAZDA MOTORS CORP.
  2. Press the area (3) indicated by the arrow and disconnect the connector (4).
