DTC P0462-00; Fuel Gauge Sender Unit Circuit Low Input: Notes
DTC P0462-00; FUEL GAUGE SENDER UNIT CIRCUIT LOW INPUT - DETECTION CONDITION & POSSIBLE CAUSE
| DTC P0462:00 |
Fuel gauge sender unit circuit low input |
| DETECTION CONDITION |
- The PCM monitors the fuel level signal and fuel gauge sender unit output voltage from the instrument cluster. If the PCM detects a fuel level or fuel gauge sender unit output voltage that is too low, the PCM determines that the fuel gauge sender unit circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
- PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- Fuel gauge sender unit connector or terminals malfunction
- BCM connector or terminals malfunction

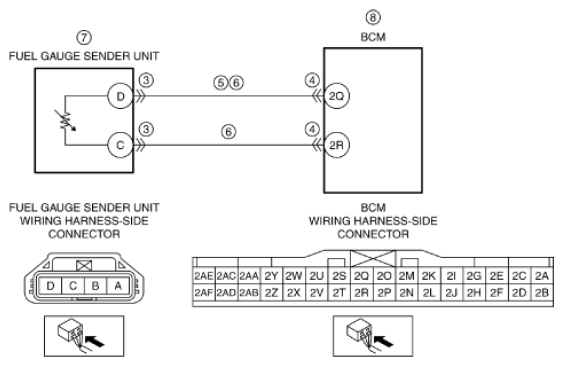

- Short to ground in wiring harness between fuel gauge sender unit terminal D and BCM terminal 2Q
- Fuel gauge sender unit signal circuit and ground circuit are shorted to each other
- Fuel gauge sender unit malfunction
- BCM malfunction
- Instrument cluster malfunction
- PCM malfunction
|
|
|
