Seat Belt Location Index

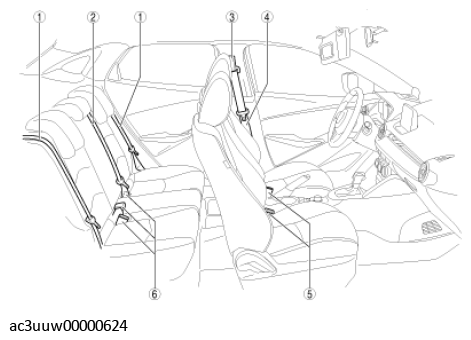

Fig 1: Seat Belt Index Component Location
G11437966Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rear seat belt
(See REAR SEAT BELT REMOVAL/INSTALLATION .)
(See SEAT BELT INSPECTION .)
2 Rear center seat belt
(See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
(See SEAT BELT INSPECTION .)
3 Adjuster anchor
(See ADJUSTER ANCHOR REMOVAL/INSTALLATION .)
4 Front seat belt
(See FRONT SEAT BELT REMOVAL/INSTALLATION .)
(See SEAT BELT INSPECTION .)
5 Front buckle
(See FRONT BUCKLE REMOVAL/INSTALLATION .)
(See BUCKLE SWITCH INSPECTION .)
6 Rear buckle
(See REAR BUCKLE REMOVAL/INSTALLATION .)
(See BUCKLE SWITCH INSPECTION .)
