Power Window Main Switch Removal/Installation

NOTE:
  • The power window main switch is integrated with the power outer mirror switch.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Affix the protective tape to the position shown in the figure to prevent scratches and damage.

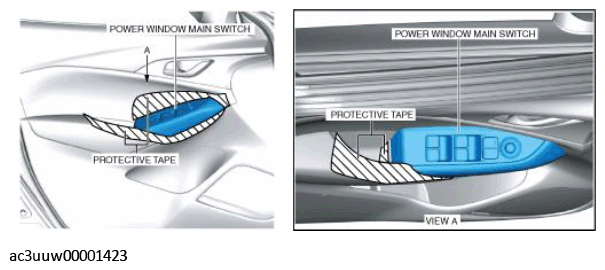

    Fig 1: Affixing Protective Tape To Scratches And Damage Position
    G11434283Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When detaching the tabs, move the remover tool gradually. If the remover tool is moved too extensively, the welded area of the power window main switch panel could be damaged.

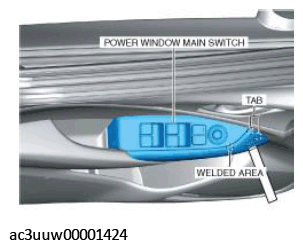

    Fig 2: Detaching Tabs
    G11434284Courtesy of MAZDA MOTORS CORP.
  3. Insert the remover tool into the position shown in the figure.

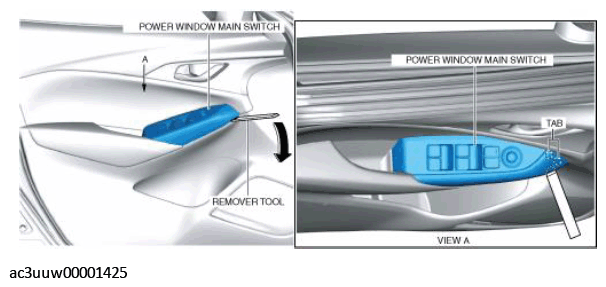

    Fig 3: Inserting Remover Tool To Power Window Main Switch Position
    G11434285Courtesy of MAZDA MOTORS CORP.
  4. Move the remover tool in the direction of the arrow shown in the figure and detach the tab.
  5. While pulling the power window main switch in the direction of arrow (1) shown in the figure, press the front door trim in the direction of arrows (2) and detach the tabs.

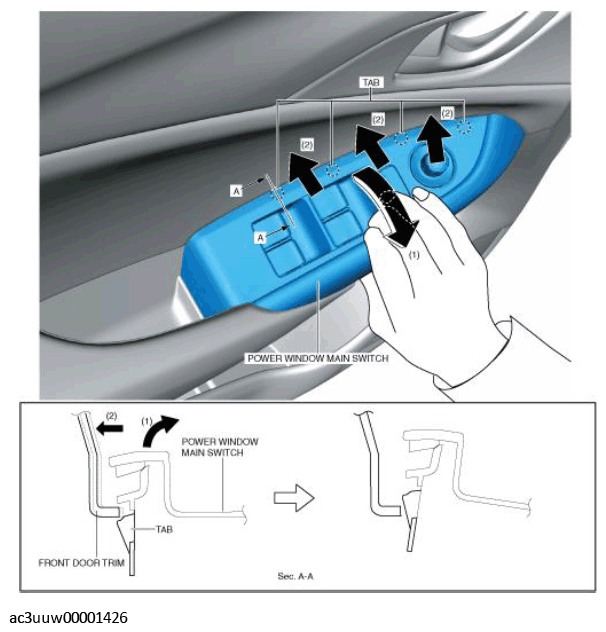

    Fig 4: Pressing Front Door Trim
    G11434286Courtesy of MAZDA MOTORS CORP.
  6. Insert the remover tool into the position shown in the figure.

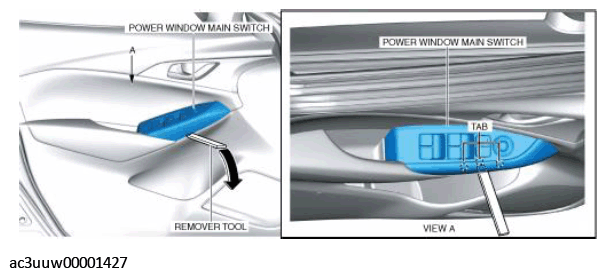

    Fig 5: Inserting Remover Tool To Power Window Main Switch Position
    G11434287Courtesy of MAZDA MOTORS CORP.
  7. Move the remover tool in the direction of the arrow shown in the figure and detach the tabs.
  8. Insert the remover tool into the position shown in the figure.

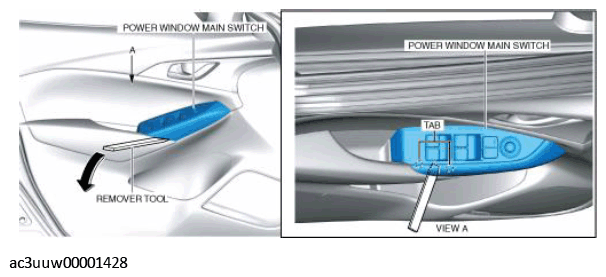

    Fig 6: Moving Remover Tool To Power Window Main Switch
    G11434288Courtesy of MAZDA MOTORS CORP.
  9. Move the remover tool in the direction of the arrow shown in the figure and detach the tabs.
  10. Insert the remover tool into the position shown in the figure.

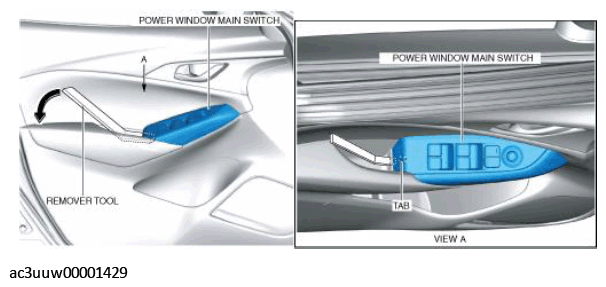

    Fig 7: Inserting Remover Tool
    G11434289Courtesy of MAZDA MOTORS CORP.
  11. Move the remover tool in the direction of the arrow shown in the figure and detach the tab.
  12. Disconnect the connectors.

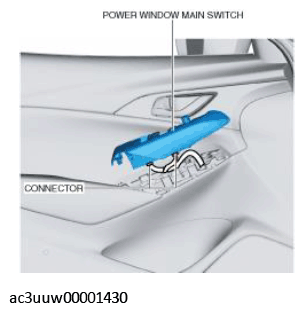

    Fig 8: Disconnecting Connectors
    G11434290Courtesy of MAZDA MOTORS CORP.
  13. Detach the tabs and remove the power window main switch from the power window main switch panel.

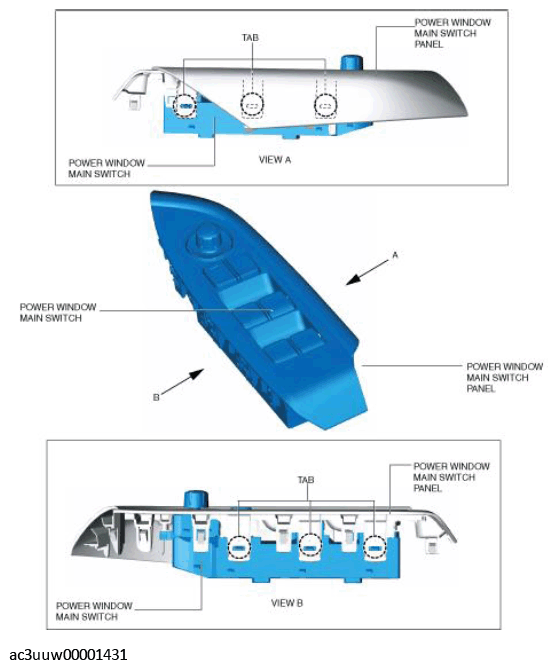

    Fig 9: Detaching Tabs
    G11434291Courtesy of MAZDA MOTORS CORP.
  14. Install in the reverse order of removal.
