On-Board Diagnostic - Engine Control System (1 Of 5)
>>
DTC P0132-00: A/F Sensor Circuit High Input
>>
System Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Wiring Diagram

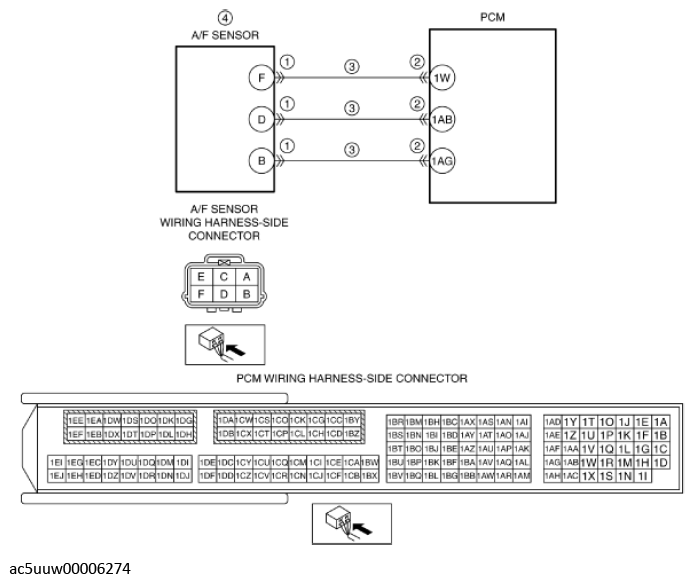

Fig 1: A/F Sensor Wiring Harness-Side Connector Terminals
Courtesy of MAZDA MOTORS CORP.
