Rear Oil Seal Replacement: Notes

Special Service Tool (SST)

49 E033 101
Dust cover installer [SKYACTIV-G 2.0]
G11429917Courtesy of MAZDA MOTORS CORP.
 49 S033 101
Dust cover installer [SKYACTIV-G 2.5]
G11429918Courtesy of MAZDA MOTORS CORP.

Replacement Part

Rear oil seal

Quantity: 1

Location of use: Cylinder block

Oil and Chemical Type

Engine oil

Type: Recommended oil

  1. Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66M-R](MTX) .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL](ATX, 2WD) .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL](ATX, AWD) .)
  2. Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION [C66M-R](MTX) .) (See DRIVE PLATE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

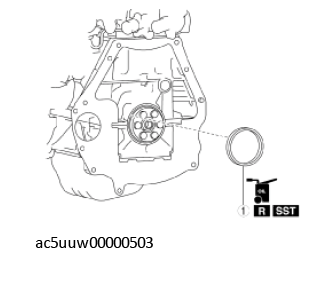

Fig 1: Installing Rear Oil Seal
G11429919Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rear oil seal
(See Rear Oil Seal Removal Note .)
(See Rear Oil Seal Installation Note .)
