Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Control System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System Diagram

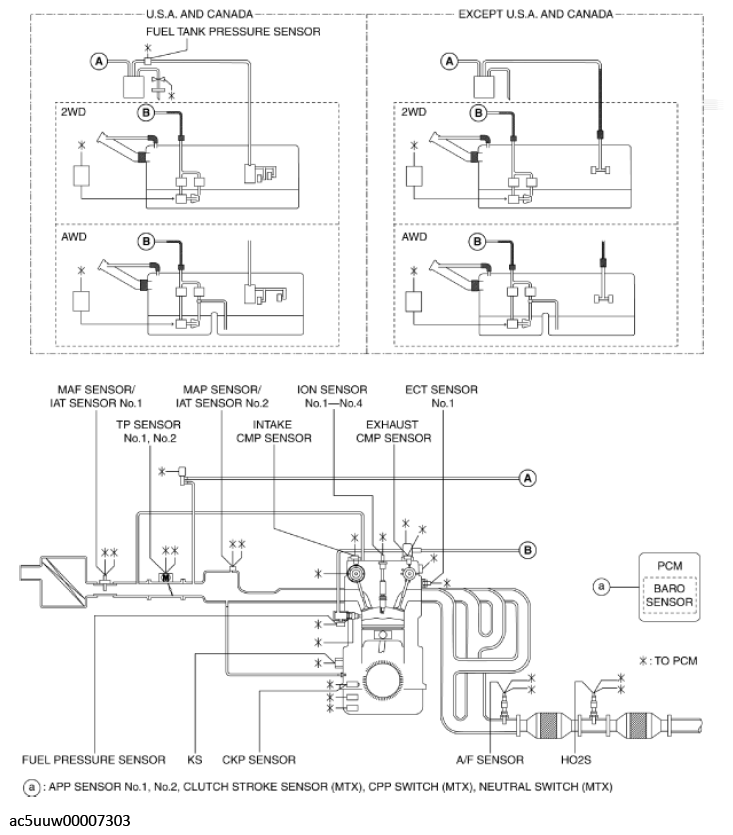

Fig 1: Fuel Tank Pressure Control System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
