DTC P0097-00: IAT Sensor No. 2 Circuit Low Input: Notes
DTC DETECTION DESCRIPTION
| DTC P0097:00 |
IAT sensor No. 2 circuit low input |
| DETECTION CONDITION |
- If the PCM detects that the IAT sensor No. 2 voltage at the PCM terminal 1CE is 0.13 V or less for 5 s, the PCM determines that the IAT sensor No. 2 circuit voltage is low.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- MAP sensor/IAT sensor No. 2 connector or terminals malfunction
- IAT sensor No. 2 malfunction

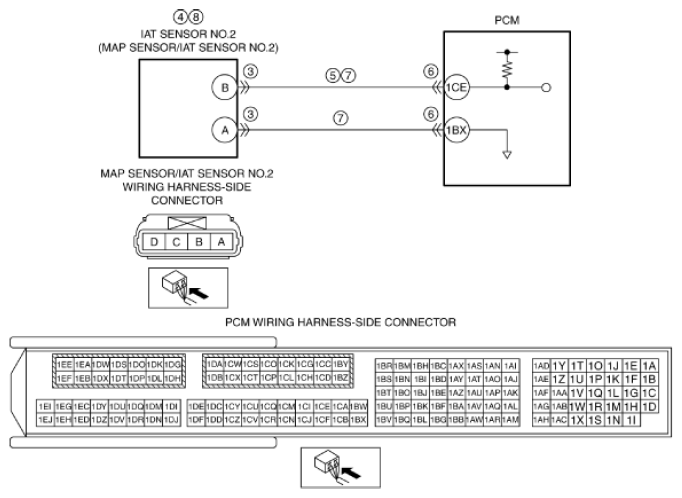

- Short to ground in wiring harness between MAP sensor/IAT sensor No. 2 terminal B and PCM terminal 1CE
- PCM connector or terminals malfunction
- IAT sensor No. 2 signal circuit and ground circuit are shorted to each other
- PCM malfunction
|
|
|
