Door Glass Other Than Driver's Door Cannot Be Operated (Cannot Be Operated Using Power Window Main Switch Or Each SUBSWITCH) [Power Window System]: Notes
DOOR GLASS OTHER THAN DRIVER'S DOOR CANNOT BE OPERATED (CANNOT BE OPERATED USING POWER WINDOW MAIN SWITCH OR EACH SUBSWITCH) - POWER WINDOW SYSTEM DESCRIPTION AND POSSIBLE CAUSES
| Description |
Door glass other than driver's door cannot be operated using power window main switch or power window subswitch |
| Possible Causes |
- Power window subswitch malfunction
- Power window motor malfunction

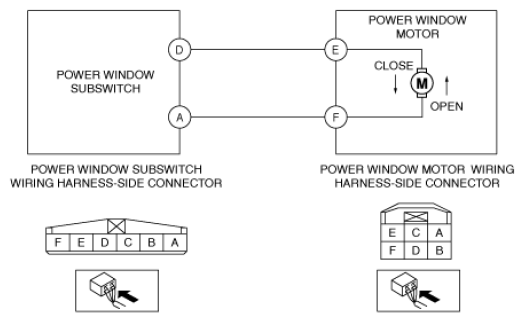

- Short to ground in wiring harness between the following terminals:
- Power window subswitch terminal A and power window motor terminal F
- Power window subswitch terminal D and power window motor terminal E
- Open circuit in wiring harness between the following terminals:
- Power window subswitch terminal A and power window motor terminal F
- Power window subswitch terminal D and power window motor terminal E
- Connector poor contact or terminal damage
|
|
|
