Air Bag System Location Index [Standard Deployment Control System]

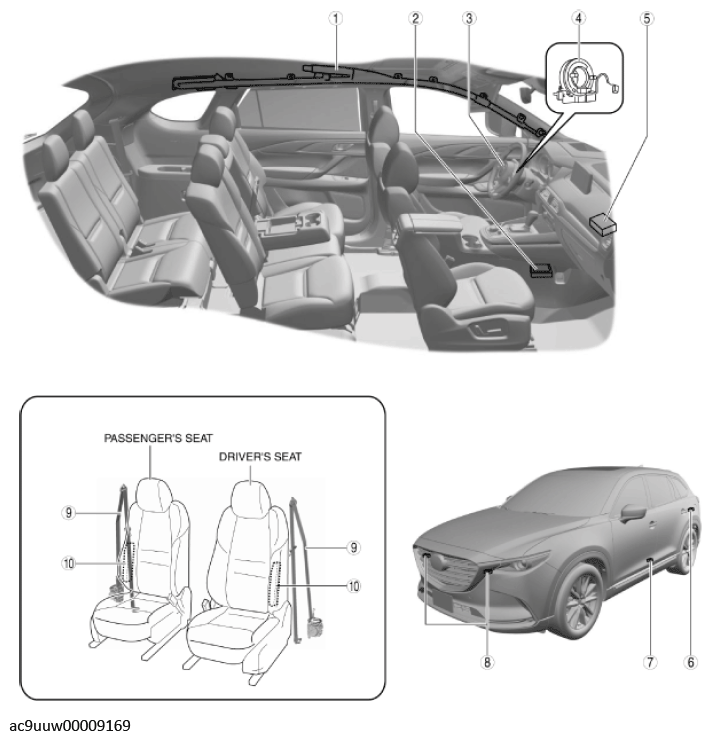

Fig 1: Air Bag System Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Curtain air bag module (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
2	SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See SAS CONTROL MODULE CONFIGURATION (USING READ/WRITE FUNCTION) [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See SAS CONTROL MODULE CONFIGURATION (USING AS-BUILT DATA) [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
3	Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
4	Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See CLOCK SPRING ADJUSTMENT [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See CLOCK SPRING INSPECTION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
5	Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
6	Side air bag sensor No. 2 (See SIDE AIR BAG SENSOR NO. 2 REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
7	Side air bag sensor No. 1 (See SIDE AIR BAG SENSOR NO. 1 REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
8	Crash zone sensor (See CRASH ZONE SENSOR REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
9	Pre-tensioner seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
10	Side air bag module (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
