| Detection condition |
- The retractable fastback control module cannot receive a signal from the top lock motor while the top lock motor is operating.
|
| Fail-safe |
- Stops retractable fastback operation
|
| Possible cause |

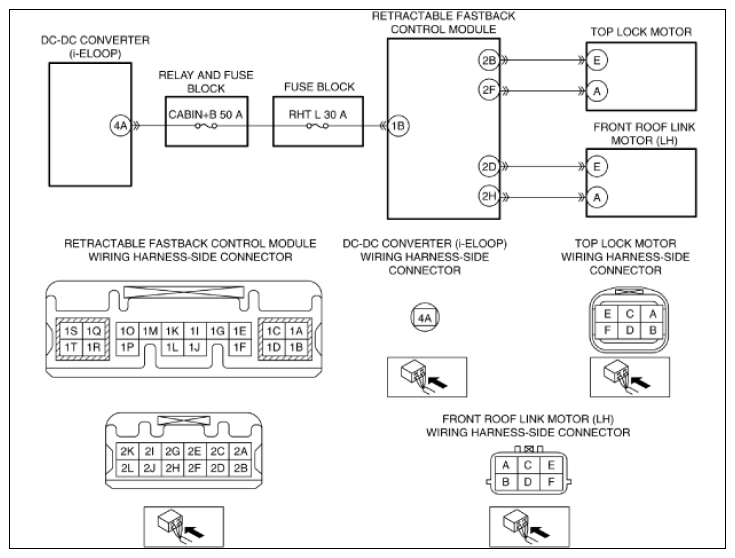

- Open circuit in wiring harness between the following terminals:
- Retractable fastback control module terminal 2B and top lock motor terminal E
- Retractable fastback control module terminal 2F and top lock motor terminal A
- Retractable fastback control module terminal 1B and DC-DC converter (i-ELOOP) terminal 4A
- CABIN+ 50 A fuse malfunction
- RHT L 30A fuse malfunction
- Short to ground in wiring harness between the following terminals:
- Retractable fastback control module terminal 2B and top lock motor terminal E
- Retractable fastback control module terminal 2F and top lock motor terminal A
- Retractable fastback control module malfunction
- Top lock motor malfunction
|
