Keyless Receiver Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
  2. Remove the following parts:
    1. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION ).
    2. Seat (LH) (See SEAT REMOVAL/INSTALLATION ).
    3. Scuff plate (LH) (See SCUFF PLATE REMOVAL/INSTALLATION ).
    4. Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION ).
    5. Side shelf (LH) (See SIDE SHELF REMOVAL/INSTALLATION ).
  3. Disconnect the connector.

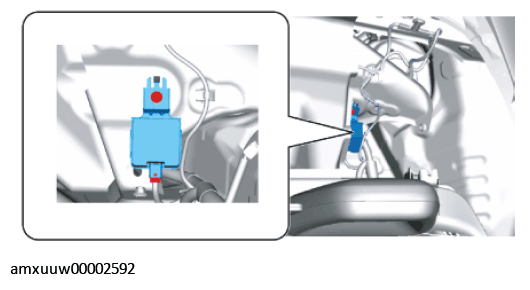

    Fig 1: Identifying Keyless Receiver Connector
    G11273527Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the keyless receiver.
  6. Install in the reverse order of removal.
