Nut, Washer and Control Rod Component Removal Note

  1. Secure the control rod component with an adjustable wrench as shown in the figure.

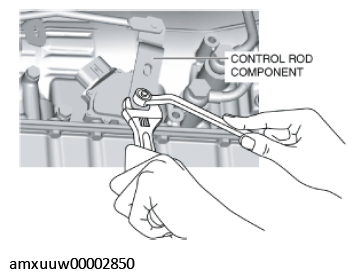

    Fig 1: Securing Control Rod Component With Adjustable Wrench
    G11279284Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not use an impact wrench.
    • When loosening the control rod nut, secure the control rod component without applying torque within the AT.
  2. Remove the control rod nut.

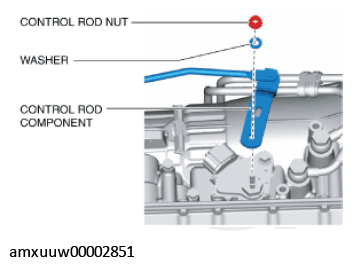

    Fig 2: Identifying Control Rod Nut, Washer And Control Rod Component
    G11279285Courtesy of MAZDA MOTORS CORP.
  3. Remove the washer and control rod component.
