Quick Diagnostic Chart

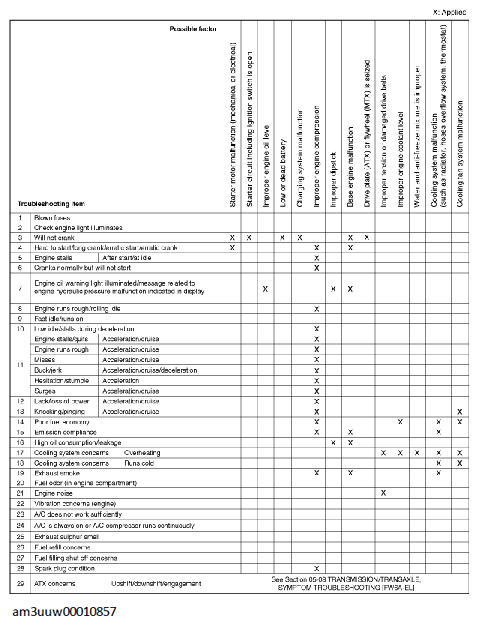

Fig 1: Quick Diagnostic Chart (1 Of 8)

G11550473

Courtesy of MAZDA MOTORS CORP.

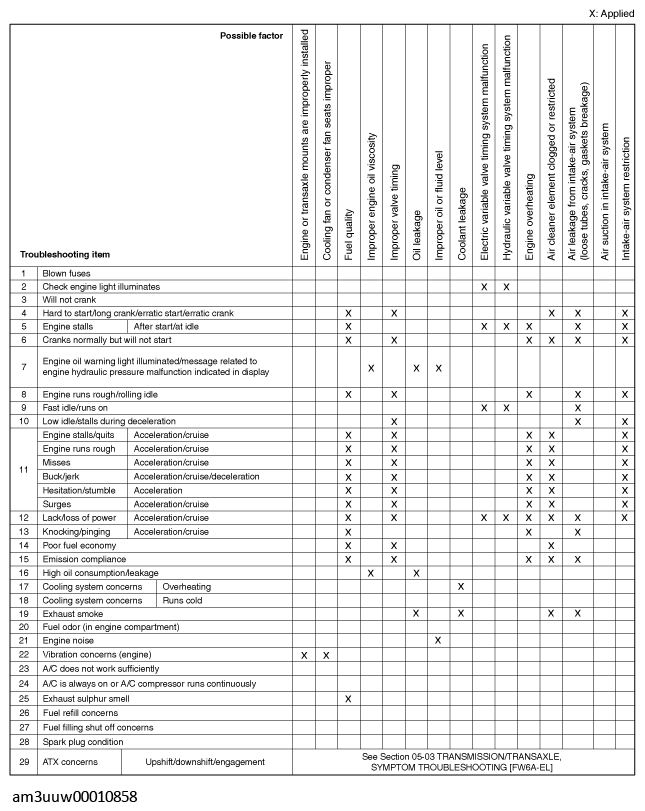

Fig 2: Quick Diagnostic Chart (2 Of 8)

G11550474

Courtesy of MAZDA MOTORS CORP.

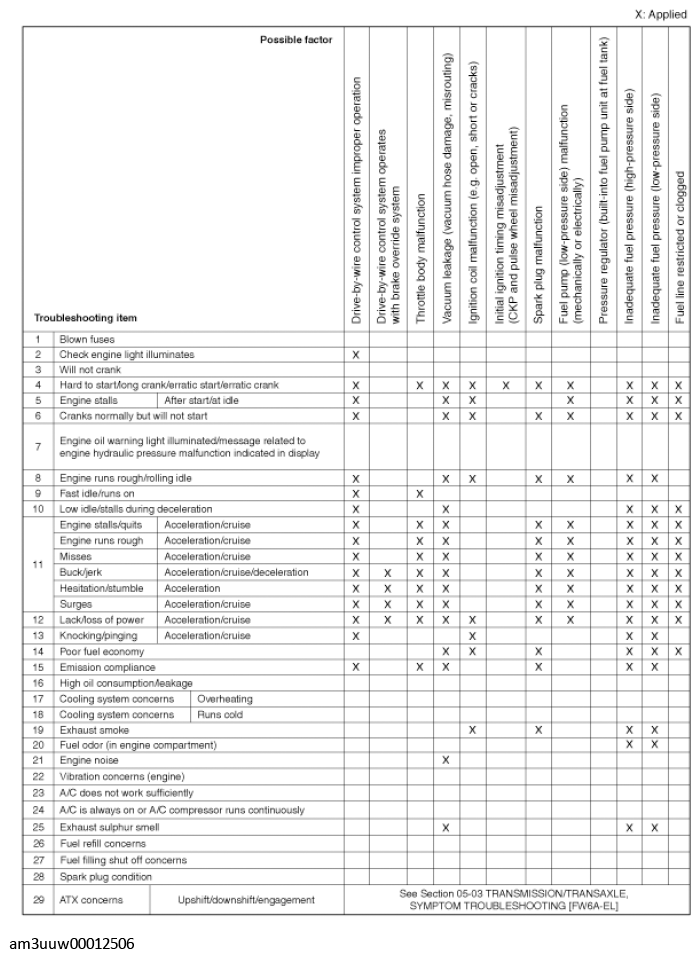

Fig 3: Quick Diagnostic Chart (3 Of 8)

G11550475

Courtesy of MAZDA MOTORS CORP.

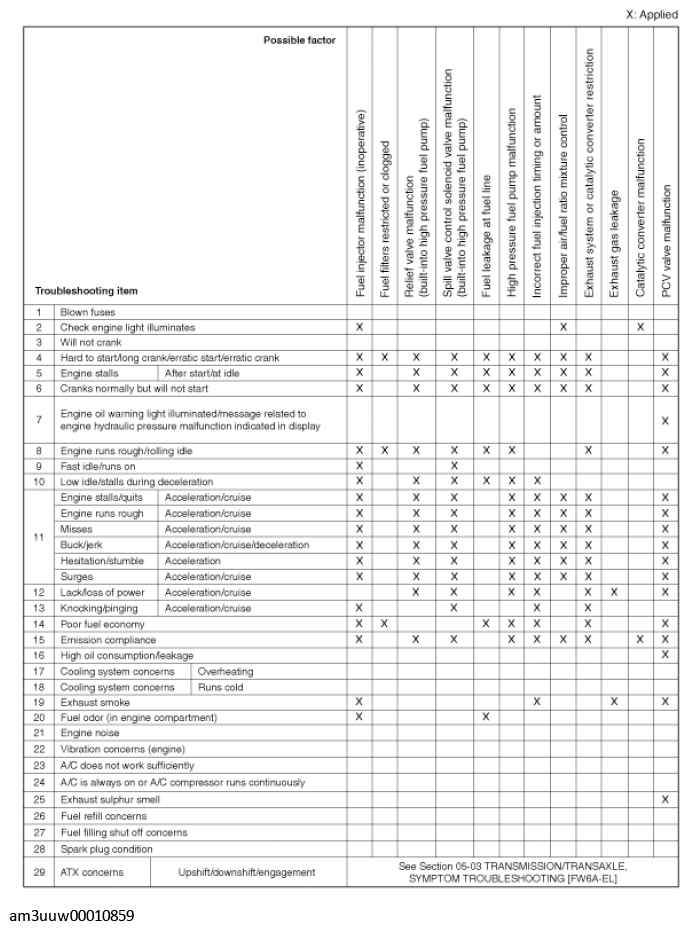

Fig 4: Quick Diagnostic Chart (4 Of 8)

G11550476

Courtesy of MAZDA MOTORS CORP.

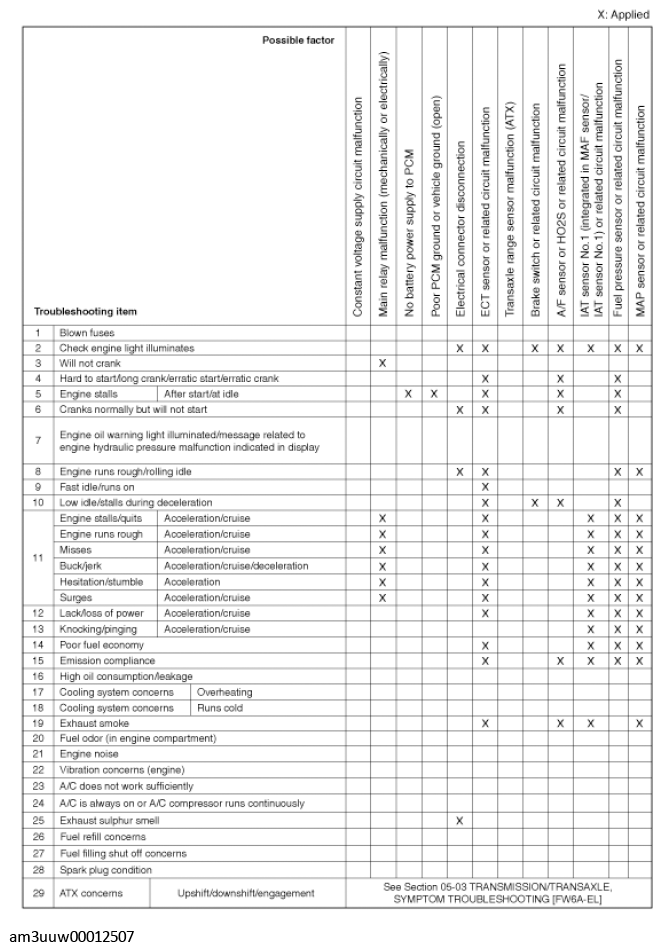

Fig 5: Quick Diagnostic Chart (5 Of 8)

G11550477

Courtesy of MAZDA MOTORS CORP.

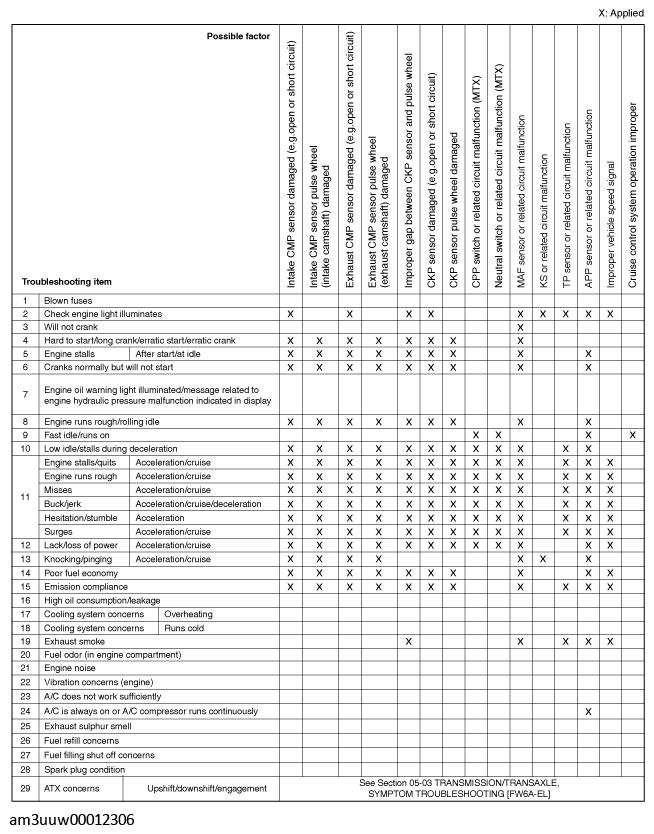

Fig 6: Quick Diagnostic Chart (6 Of 8)

G11550478

Courtesy of MAZDA MOTORS CORP.

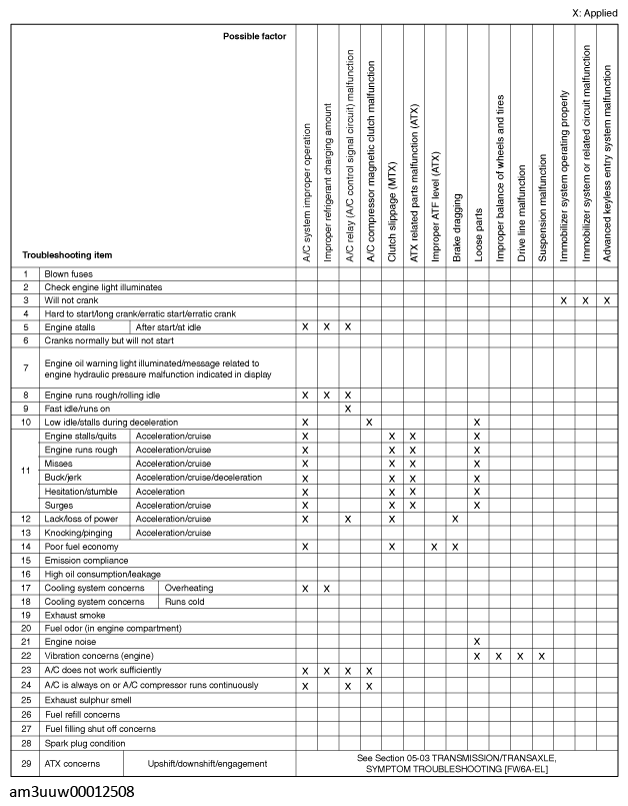

Fig 7: Quick Diagnostic Chart (7 Of 8)

G11550479

Courtesy of MAZDA MOTORS CORP.

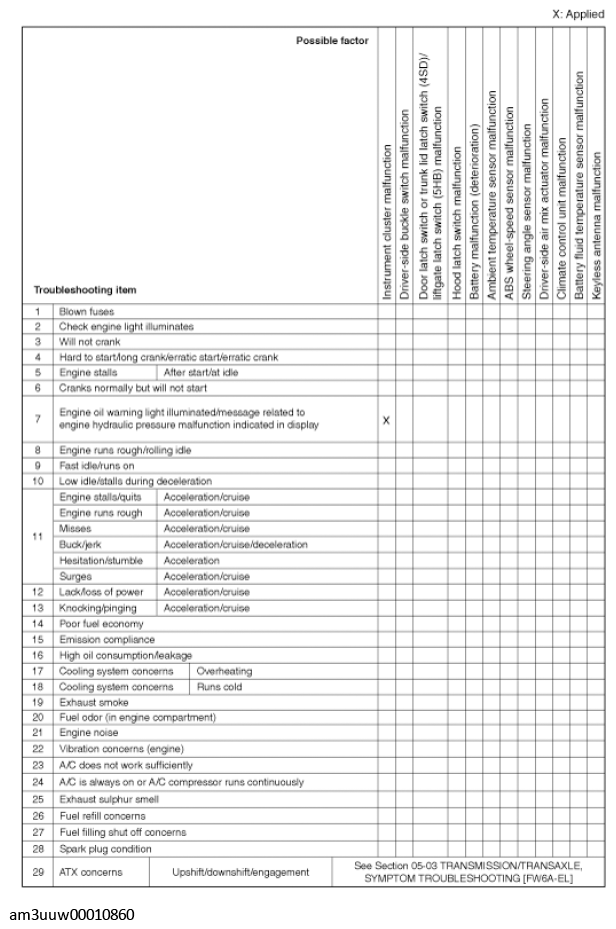

Fig 8: Quick Diagnostic Chart (8 Of 8)

G11550480

Courtesy of MAZDA MOTORS CORP.
