On-Board Diagnostic Wiring Diagram (SAS Control Module (Two-Step Deployment Control System - Us/CANADA Spec.))

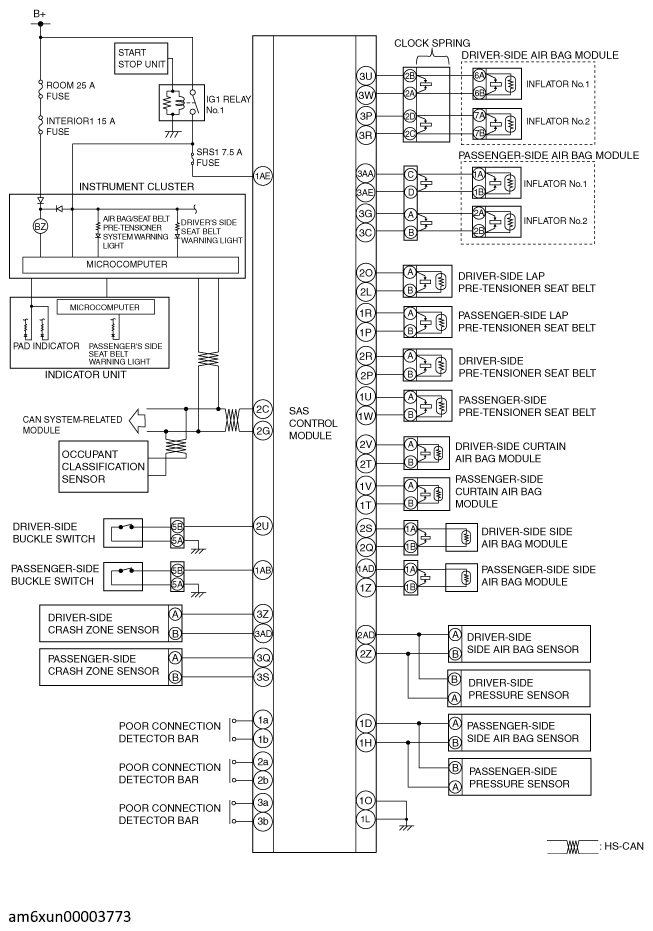

Fig 1: SAS Control Module (Two-Step Deployment Control System) Wiring Diagram

Courtesy of MAZDA MOTORS CORP.

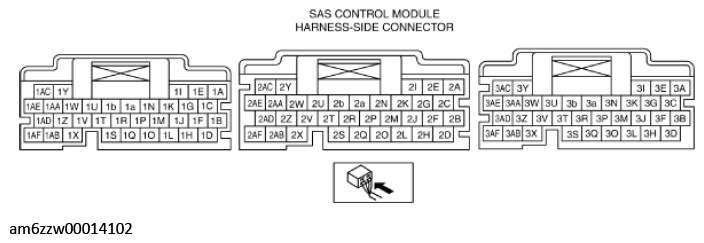

Fig 2: SAS Control Module (Two-Step Deployment Control System) Connector Terminals

Courtesy of MAZDA MOTORS CORP.
