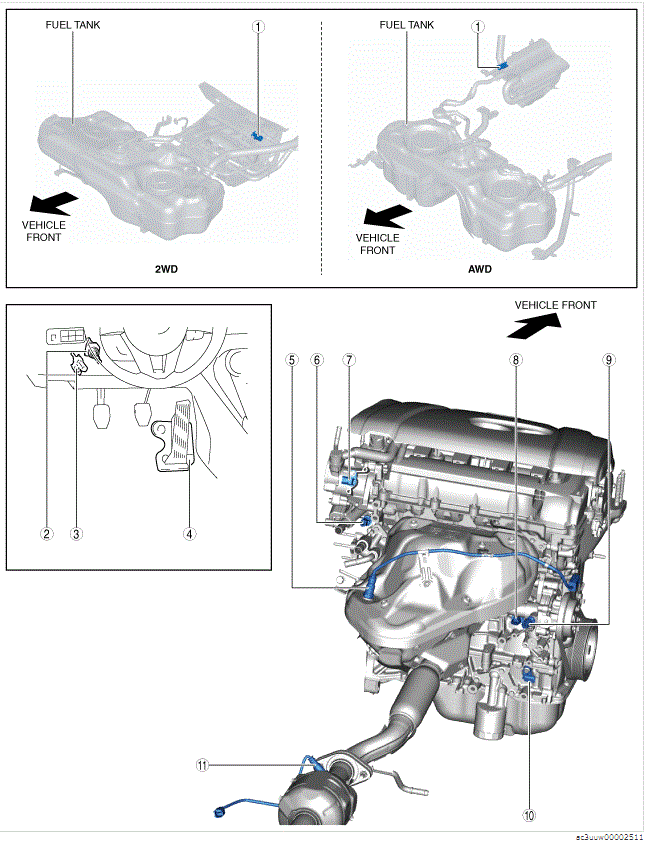

| 1 |
Fuel tank pressure sensor
(See
FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See
FUEL TANK PRESSURE SENSOR INSPECTION .) |
| 2 |
Clutch stroke sensor (MTX) (If equipped)
(See
CLUTCH STROKE SENSOR INSPECTION [SKYACTIV-G 2.0].) |
| 3 |
CPP switch (MTX)
(See
CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [SKYACTIV-G 2.0].) |
| 4 |
APP sensor
(See
ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .)
(See
ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .) |
| 5 |
A/F sensor
(See
AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .)
(See
AIR FUEL RATIO (A/F) SENSOR INSPECTION .) |
| 6 |
ECT sensor No. 2
(See
ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See
ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .) |
| 7 |
Exhaust CMP sensor
(See
CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See
CAMSHAFT POSITION (CMP) SENSOR INSPECTION .) |
| 8 |
Engine oil temperature sensor/Engine oil pressure sensor
(See
ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
(See
ENGINE OIL TEMPERATURE SENSOR INSPECTION [SKYACTIV-G 2.0].)
(See
ENGINE OIL PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.0].) |
| 9 |
ECT sensor No. 1
(See
ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See
ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .) |
| 10 |
CKP sensor
(See
CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
(See
CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .) |
| 11 |
HO2S
(See
HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
(See
HEATED OXYGEN SENSOR (HO2S) INSPECTION .) |
