DTC B144F-13: Power Liftgate (PLG) Drive Unit Motor Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2018 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
DTC B144F:13 (POWER LIFTGATE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Power liftgate (PLG) drive unit motor circuit malfunction |
| Detection Condition |
- Power liftgate (PLG) control module detected an open circuit in the power liftgate (PLG) drive unit circuit for 5 s or more.
|
| Fail-safe |
- Stops the power liftgate (PLG) system operation.
|
| Possible Cause |
- Power liftgate (PLG) drive unit (LH) connector or terminal malfunction
- Power liftgate (PLG) drive unit (RH) connector or terminal malfunction
- Power liftgate (PLG) control module connector or terminal malfunction

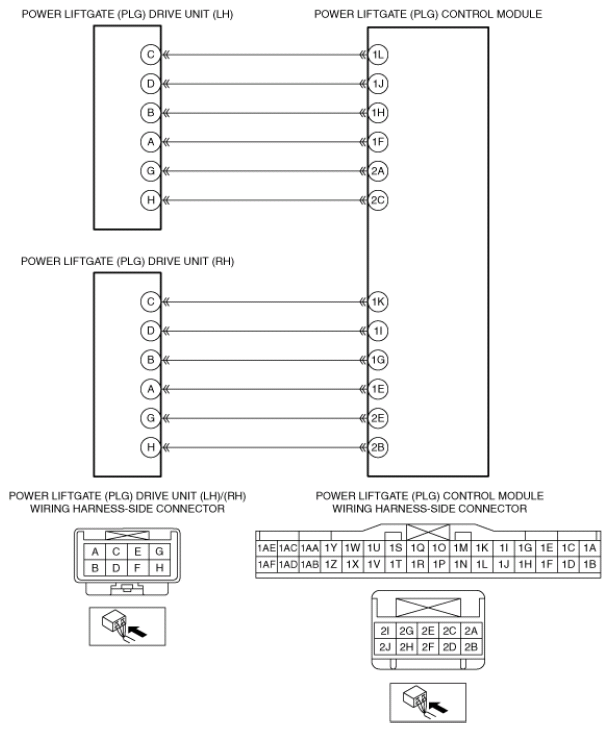

- Open circuit in wiring harness between the following terminals:
- Power liftgate (PLG) drive unit (LH) terminal G-Power liftgate (PLG) control module terminal 2A
- Power liftgate (PLG) drive unit (LH) terminal H-Power liftgate (PLG) control module terminal 2C
- Power liftgate (PLG) drive unit (RH) terminal G-Power liftgate (PLG) control module terminal 2E
- Power liftgate (PLG) drive unit (RH) terminal H-Power liftgate (PLG) control module terminal 2B
- Power liftgate (PLG) drive unit (LH) malfunction
- Power liftgate (PLG) drive unit (RH) malfunction
- Power liftgate (PLG) control module malfunction
|
|
|
