Troubleshooting Procedure

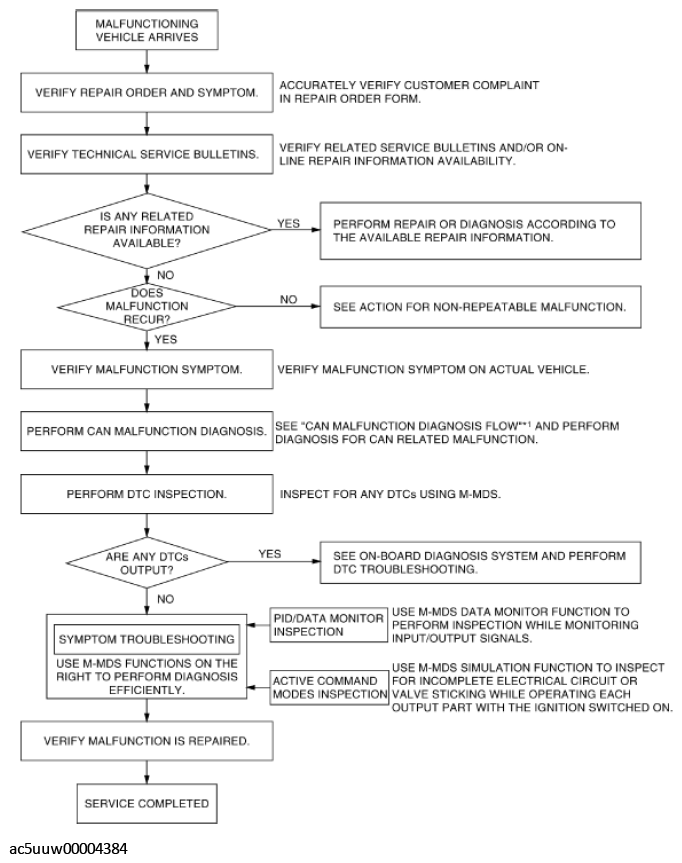

Fig 1: Foreword Troubleshooting Procedure Flowchart
G11430173Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
