Quick Diagnostic Chart

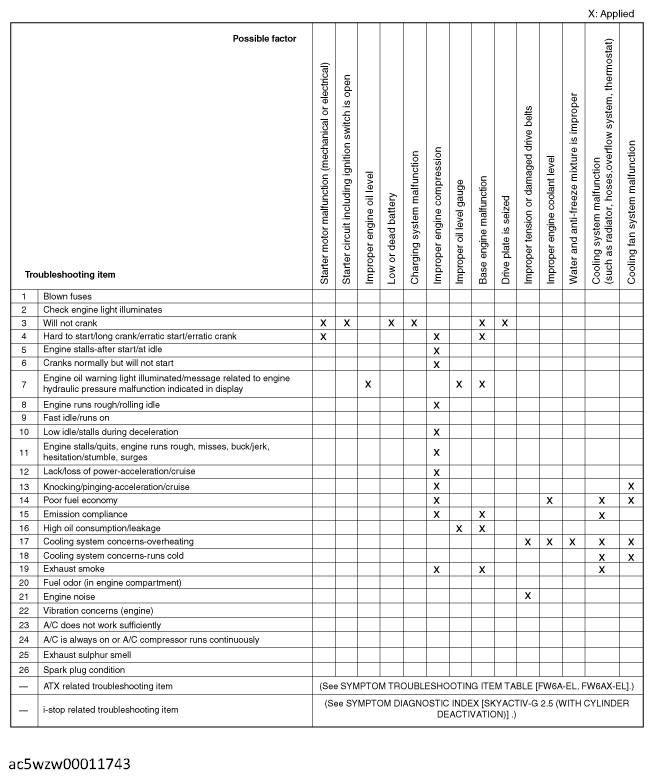

Fig 1: Quick Diagnostic Flow Chart (1 Of 8)

G12184150

Courtesy of MAZDA MOTORS CORP.

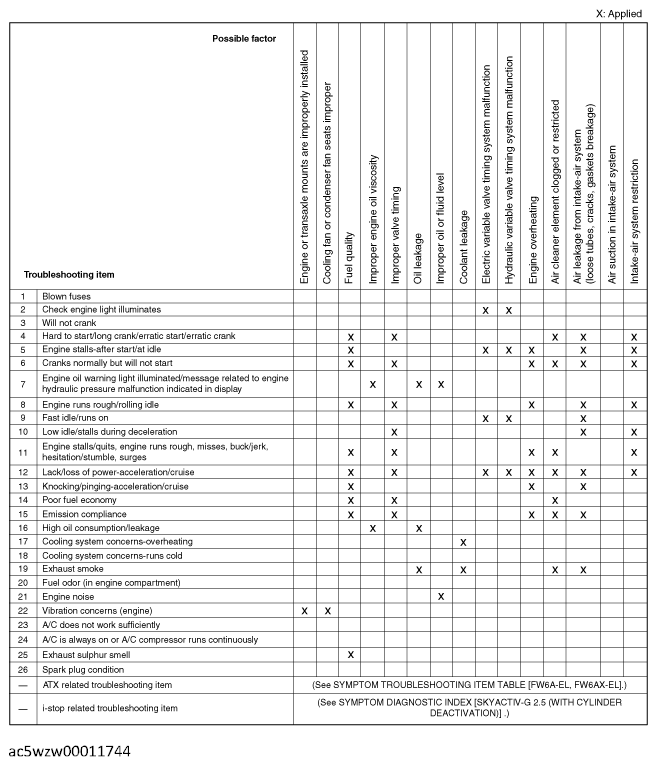

Fig 2: Quick Diagnostic Flow Chart (2 Of 8)

G12184151

Courtesy of MAZDA MOTORS CORP.

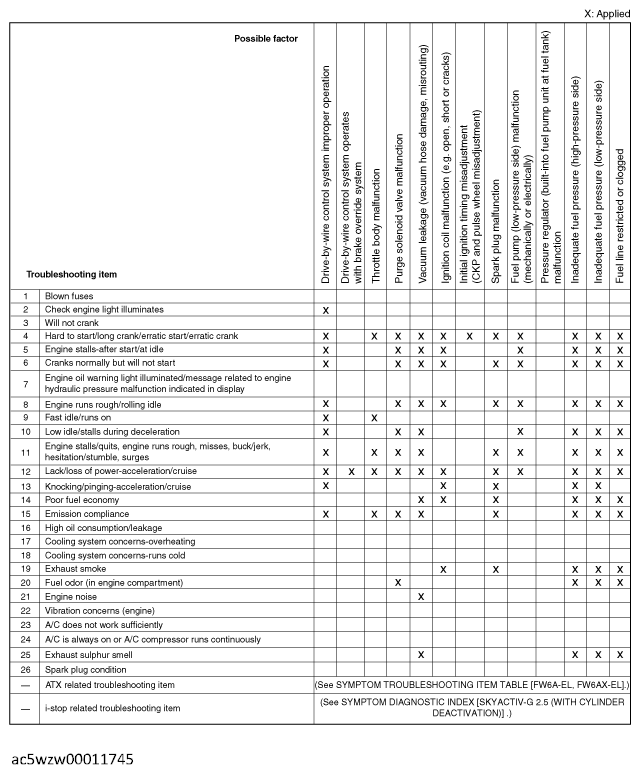

Fig 3: Quick Diagnostic Flow Chart (3 Of 8)

G12184152

Courtesy of MAZDA MOTORS CORP.

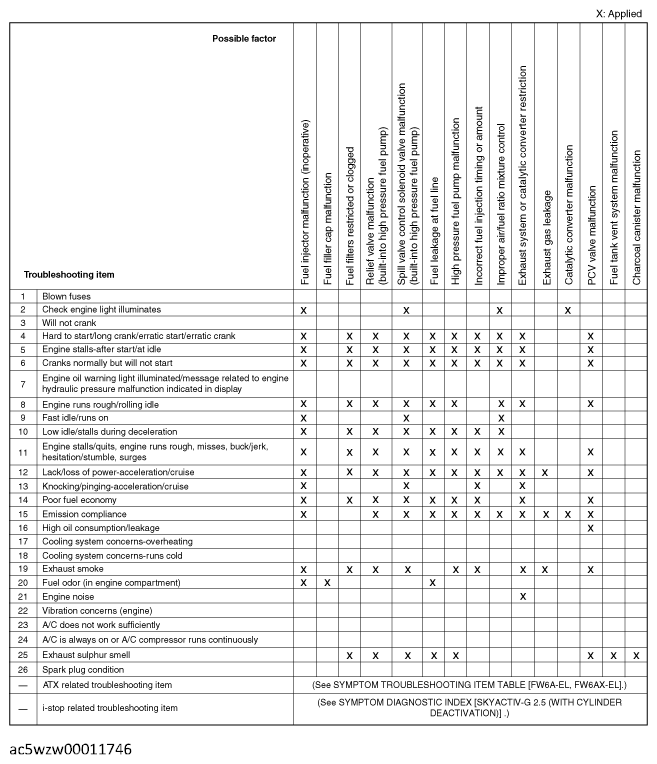

Fig 4: Quick Diagnostic Flow Chart (4 Of 8)

G12184153

Courtesy of MAZDA MOTORS CORP.

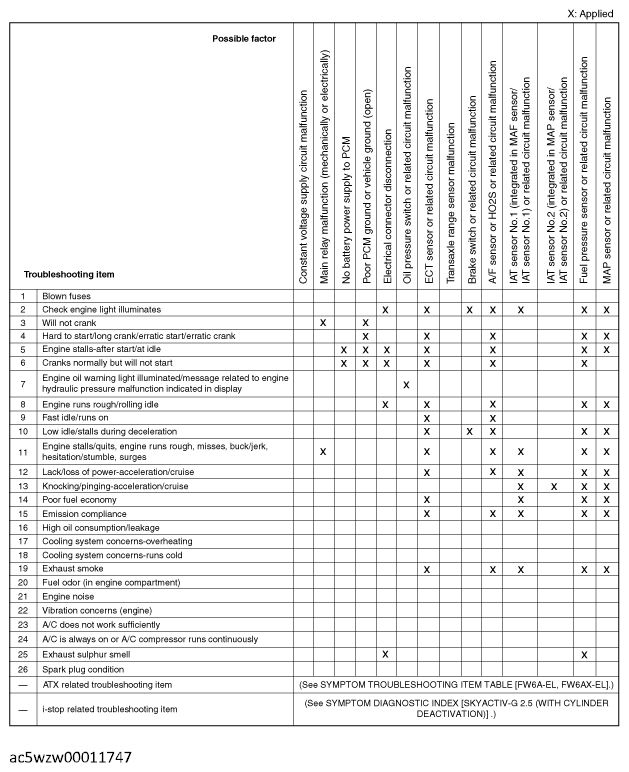

Fig 5: Quick Diagnostic Flow Chart (5 Of 8)

G12184154

Courtesy of MAZDA MOTORS CORP.

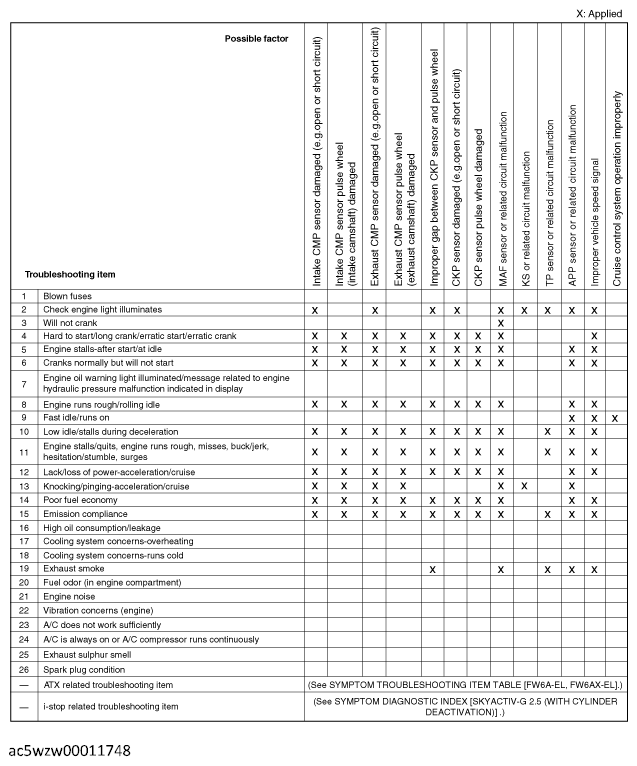

Fig 6: Quick Diagnostic Flow Chart (6 Of 8)

G12184155

Courtesy of MAZDA MOTORS CORP.

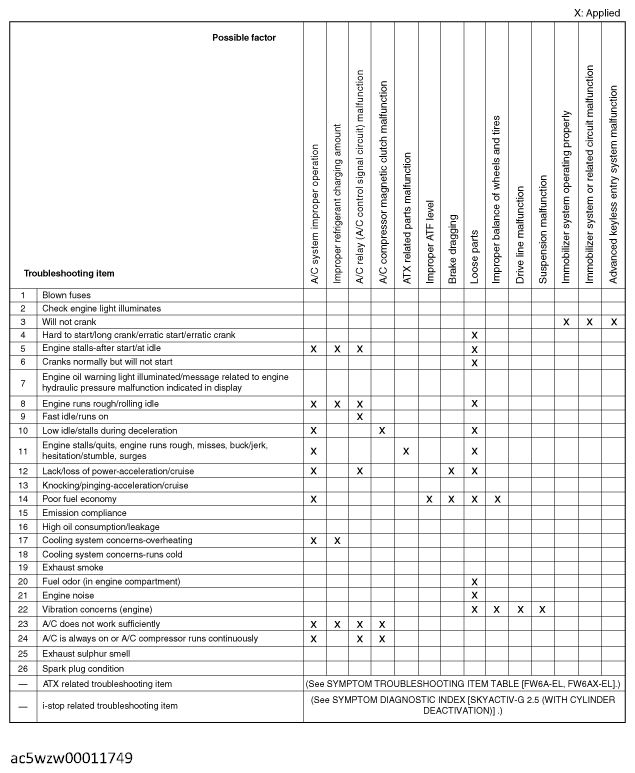

Fig 7: Quick Diagnostic Flow Chart (7 Of 8)

G12184156

Courtesy of MAZDA MOTORS CORP.

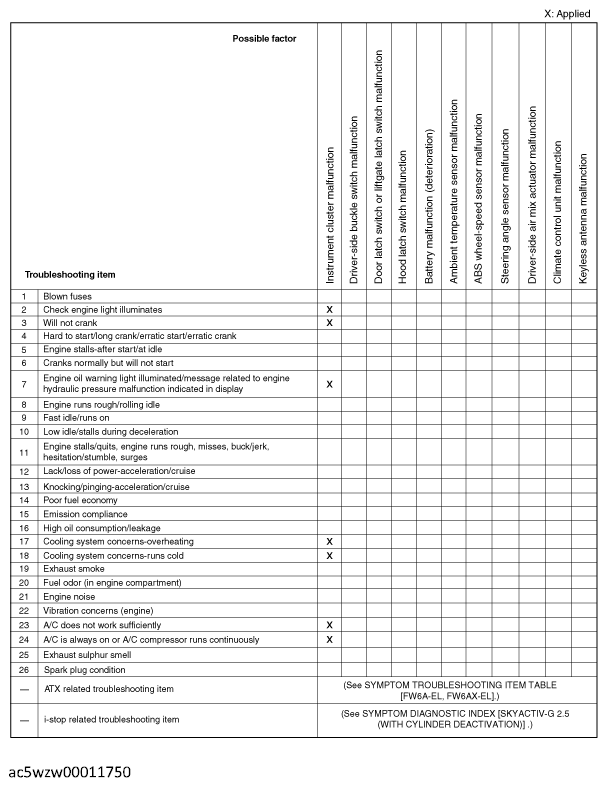

Fig 8: Quick Diagnostic Flow Chart (8 Of 8)

G12184157

Courtesy of MAZDA MOTORS CORP.
