Setting method by operation of remote transmitter button

• The following setting can be changed by operation of the remote transmitter button.

  Function	Initial Setting	Setting Content	Control Unit
  2-step unlocking function.(1)	ON	OFF/ON	Start stop unit
  (1) With 2-step unlocking function.

• Change the setting for the 2-step unlocking function referring to the following procedure:
  NOTE:

  • If any of the following conditions is met during procedure, the setting for changing the keyless beeper volume is finished.
    • The ignition is switched to ACC or ON (engine off or on).
    • The driver's door is closed.
    • The liftgate is open.
    • The remote transmitter operation is not performed for approx. 10 s.
    • The lock button on the remote transmitter is pressed.
    • A request switch is pressed.

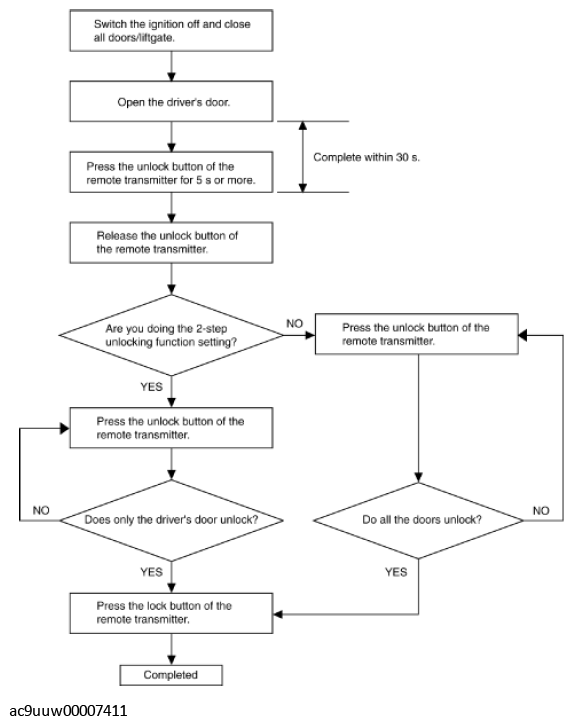

Fig 1: Power Door Lock System Troubleshooting Flowchart

Courtesy of MAZDA MOTORS CORP.
