DTC B1087-87: Communication Error With Commander Switch: Notes
DTC B1087:87 (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Communication Error With Commander Switch |
| Detection Condition |
- The connectivity master unit (Control Module Unit) cannot receive a LIN signal from the commander switch for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible Cause |
- Commander switch connector or terminal malfunction
- Connectivity master unit (Control Module Unit) connector or terminal malfunction

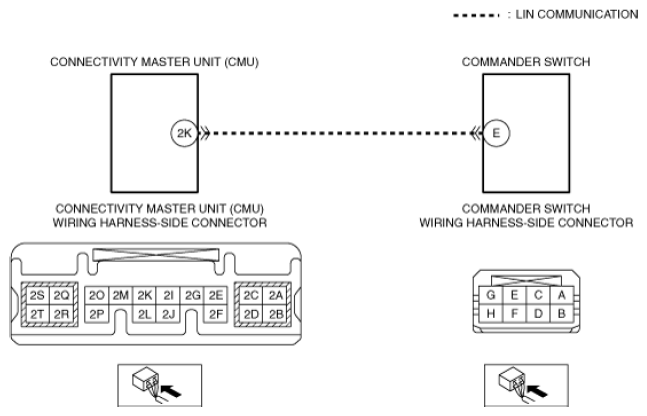

- Short to ground in wiring harness between connectivity master unit (Control Module Unit) terminal 2K and commander switch terminal E
- Short to power supply in wiring harness between connectivity master unit (Control Module Unit) terminal 2K and commander switch terminal E
- Open circuit in wiring harness between connectivity master unit (Control Module Unit) terminal 2K and commander switch terminal E
- Commander switch malfunction
- Connectivity master unit (Control Module Unit) malfunction
|
|
|
