No Temperature Control With Front Climate Control Unit (Climate Control System): Notes

NOTE:

• There are two types of front climate control unit, type A and type B.

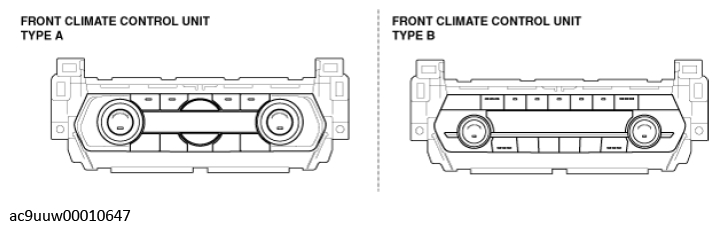

Fig 1: Front Climate Control Unit (Type A And Type B)

Courtesy of MAZDA MOTORS CORP.
