Side Air Bag Module

  1. Disconnect the side air bag module connector.

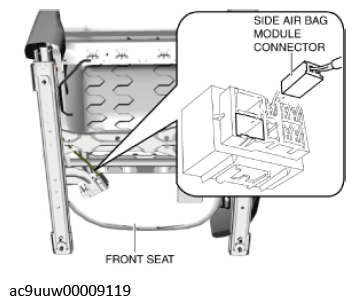

    Fig 1: Detaching Side Air Bag Module Connector
    G11438477Courtesy of MAZDA MOTORS CORP.
  2. Connect the SST (Adapter harness) to the side air bag module connector.
    Fig 2: Connecting SST (Adapter Harness) To Front Seat Connector
    G11276455Courtesy of MAZDA MOTORS CORP.
  3. Connect the SST (Deployment tool) to the SST (Adapter harness).

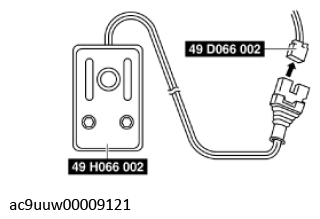

    Fig 3: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G11438479Courtesy of MAZDA MOTORS CORP.
  4. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  5. Verify that the red lamp on the SST (Deployment tool) is illuminated.
  6. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.
  7. Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.
    Fig 4: Activation Switch On SST (Deployment Tool)
    G11438472Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
  8. Disconnect the SST (Deployment tool) from the SST (Adapter harness).
