Curtain Air Bag Module Removal/Installation (Two-Step Deployment Control System): Notes

WARNING:

Handling the curtain air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the curtain air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS (Two-Step Deployment Control System) .) (See AIR BAG SYSTEM SERVICE CAUTIONS (Two-Step Deployment Control System) .)

Switch the ignition to off.
Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Partially peel back the seaming welts.
Remove the following parts:
1. Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
3. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
4. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
5. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
6. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
8. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
9. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
10. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
11. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
12. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
13. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
14. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
15. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
16. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
17. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
18. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
19. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
20. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
21. Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
22. Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
23. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
24. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
25. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
26. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
27. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
28. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
29. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
30. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
31. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
32. Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
33. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
34. Headliner (See HEADLINER REMOVAL/INSTALLATION .)

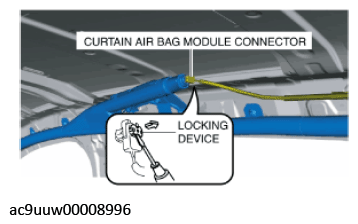

Using a Flathead screwdriver, lift the locking device carefully, however do not remove it.

Fig 1: Lifting Locking Device Carefully Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Disconnect the curtain air bag module connector.
Remove the clip. (See CLIP REMOVAL NOTE .)

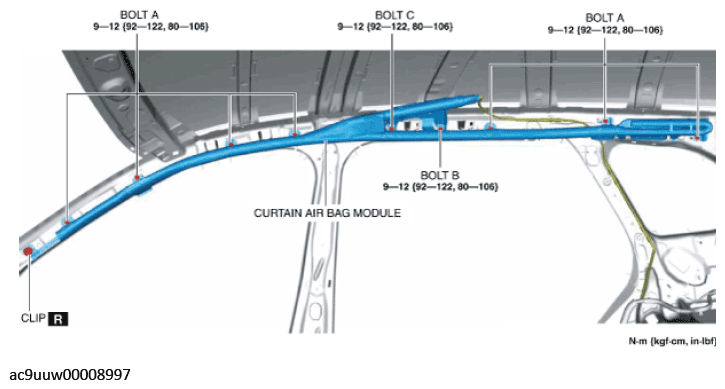

Fig 2: Curtain Air Bag Module And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove bolts A.
Remove bolt B.
Remove bolt C.
Remove guide A from the body.

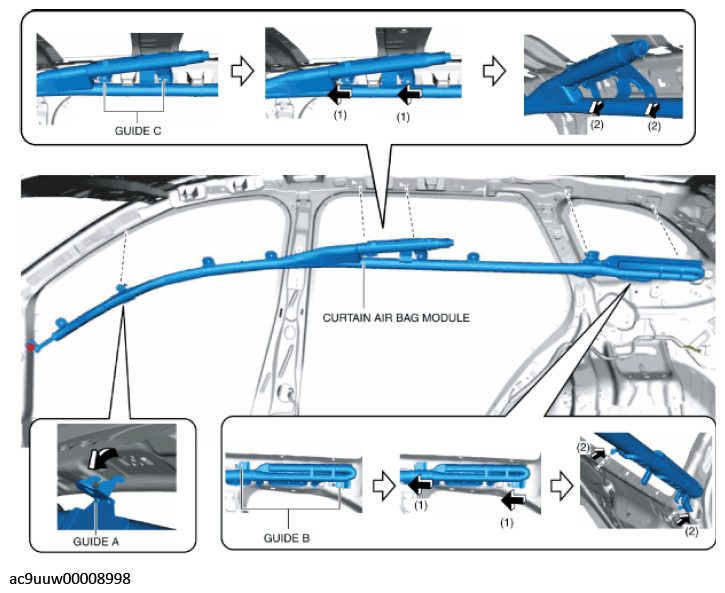

Fig 3: Removing Guides From Curtain Air Bag Module
Courtesy of MAZDA MOTORS CORP.
Move guide B in the order of arrows (1) and (2) shown in the figure and remove it from the body.
Move guide C in the order of arrows (1) and (2) shown in the figure and remove it from the body.
Remove the curtain air bag module.
Install in the reverse order of removal.
Switch the ignition ON (engine off or on).
Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
- If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the onboard diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)] .)
