Side Air Bag Sensor No. 2 Removal/Installation (Two-Step Deployment Control System): Notes

WARNING:

Handling the side air bag sensor No. 2 improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the side air bag sensor No.
(See AIR BAG SYSTEM SERVICE WARNINGS (Two-Step Deployment Control System) .) (See AIR BAG SYSTEM SERVICE CAUTIONS (Two-Step Deployment Control System) .)

Switch the ignition to off.
Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
Remove the service hole covers.

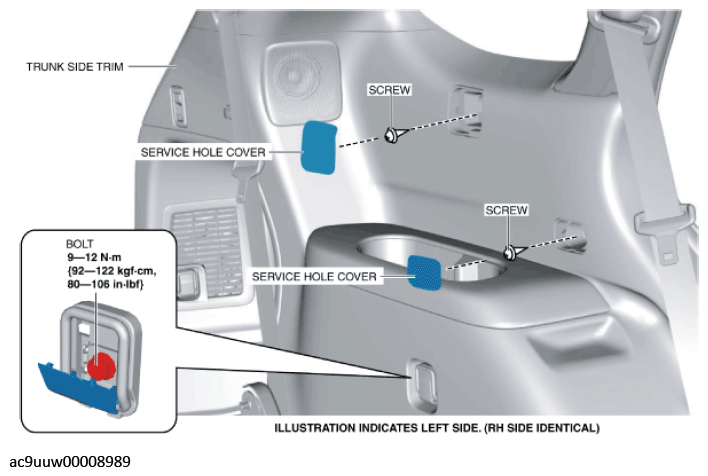

Fig 1: Removing Service Hole Covers From Trunk Side Trim And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the screws.
Remove the bolt.
Partially peel back the trunk side trim.
Disconnect the side air bag sensor No. 2 connector. (See SIDE AIR BAG SENSOR NO. 2 CONNECTOR DISCONNECT NOTE .)

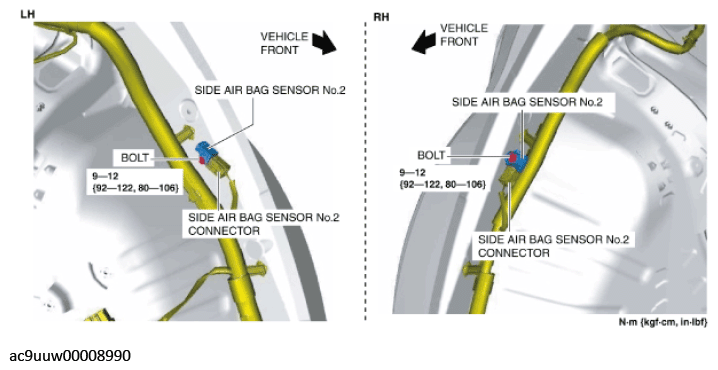

Fig 2: Side Air Bag Sensor No 2 Connector And Bolt With Torque Specifications (LH And RH)
Courtesy of MAZDA MOTORS CORP.
Remove the bolt.
Remove the side air bag sensor No. 2.
Install in the reverse order of removal.
Switch the ignition ON (engine off or on).
Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
- If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the onboard diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)] .)
