Snapshot Counter Pattern

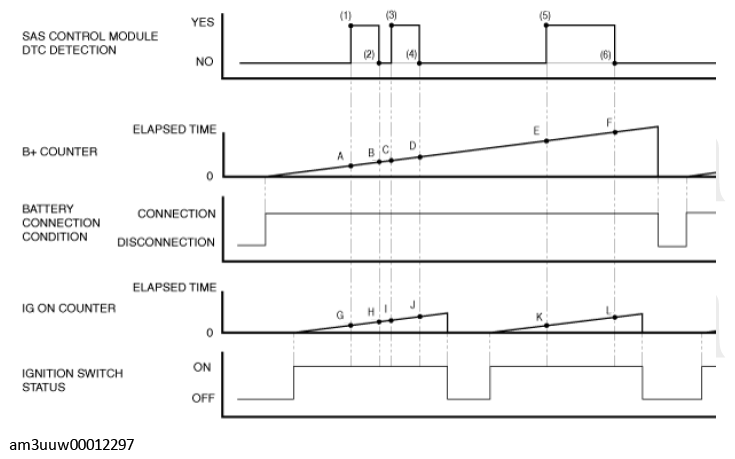

Fig 1: SAS Control Module Graph

Courtesy of MAZDA MOTORS CORP.

SNAPSHOT DATA

SAS control module DTC detection period	Snapshot data
	FAULT_CNT (Number of malfunction detections)	TOTAL_TIME	FIRST_DET_IG	LAST_DET	LAST_DET_IG	LAST_CLR	LAST_CLR_IG
	Number of malfunction detections	Time when first malfunction occurs (B+ counter)	Time when initial malfunction occurs (IG-ON counter)	Time when last malfunction occurs (B+ counter)	Time when last malfunction occurs (IG-ON counter)	Repair time for last malfunction (B+ counter)	Repair time for last malfunction (IG-ON counter)
(1)	1	A	G	A	G	-	-
(2)	1	A	G	A	G	B	H
(3)	2	A	G	C	I	B	H
(4)	2	A	G	C	I	D	J
(5)	3	A	G	E	K	D	J
(6)	3	A	G	E	K	F	L
