Spacer, Rubber And EPS Control Module Installation Note

Install the spacer and rubber to the steering column.
Install the EPS Control Module so that the projecting part of the EPS Control Module (rotor) is engaged with the notch in the rubber.

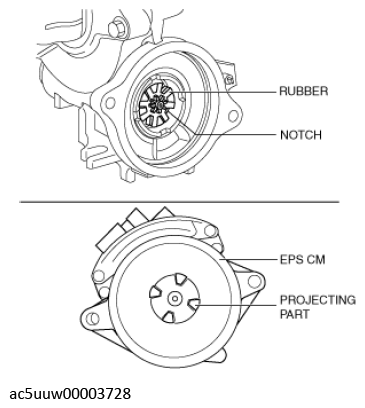

Fig 1: Installing EPS Control Module Projecting Part Of EPS Control Module (Rotor) With Notch In Rubber
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If the projecting part of the EPS Control Module (rotor) is not engaged with the notch in the rubber, adjust the position of the EPS Control Module projection (rotor).
