On-Board Diagnostic Wiring Diagram (Parking Sensor Control Module)
Parking sensor system

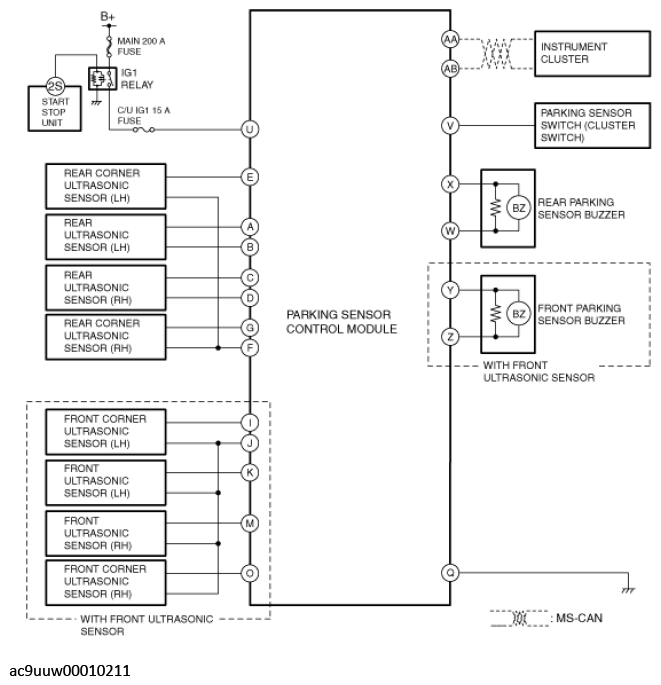

Fig 1: Parking Sensor Control Module - On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
