On-Board Diagnostic Wiring Diagram (Blind Spot Monitoring (BSM) Control Module)

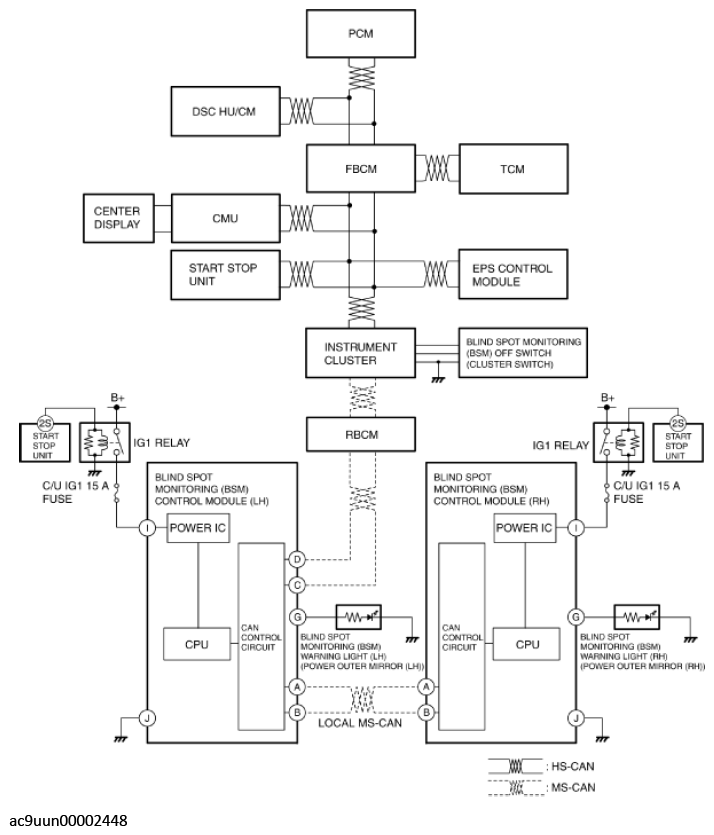

Fig 1: Blind Spot Monitoring Wiring Diagram
G11441295Courtesy of MAZDA MOTORS CORP.
