Inspection Using An Oscilloscope (Reference)

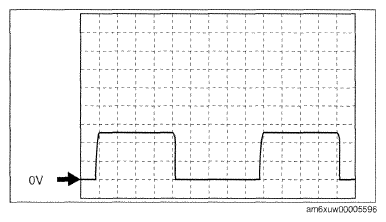

Fig 1: Checking Power Window Motor Wave Pattern Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
Terminal: D, F(+) ↔ ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
Courtesy of MAZDA MOTORS CORP.
