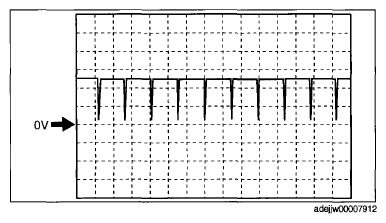

CKP Signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
- 1AA(+)-body ground(-)
Oscilloscope setting
- 2 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
- Idle (after warm up)
