Master Cylinder Removal/Installation: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
Special Service Tool (SST)
| 49 JP01 003 Holder |
- | - |
CAUTION:
- Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.
NOTE:
- Tighten the brake pipe flare nut using any commercially available flare nut wrench.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the battery. (See BATTERY REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- If the master cylinder component is replaced as a single unit, adjust the power brake unit rod. (See ROD ADJUSTMENT NOTE .)
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)

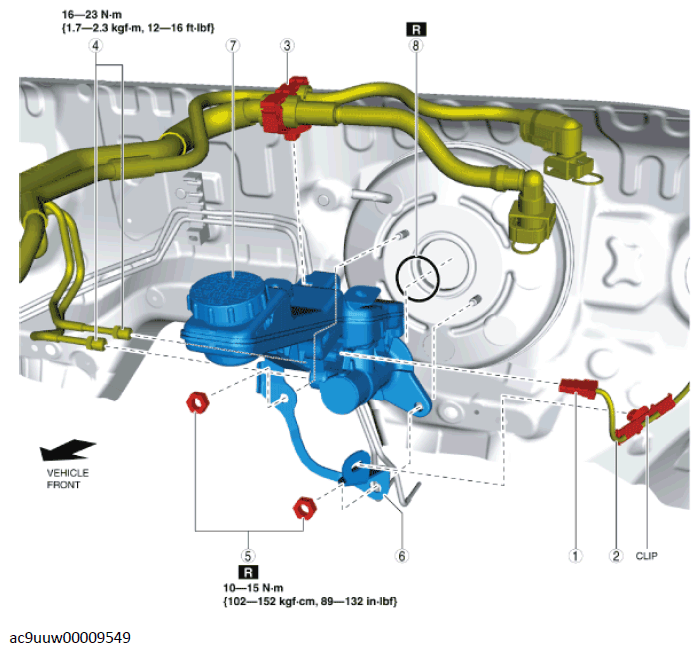

COMPONENT DESCRIPTION
| 1 | Brake fluid level sensor connector |
| 2 | Brake fluid level sensor wiring harness |
| 3 | Hose holder |
| 4 | Brake pipe |
| 5 | Nut |
| 6 | Bracket |
| 7 | Master cylinder |
| 8 | O-ring |
