On-Board Diagnostic Wiring Diagram (Retractable Fastback Control Module)

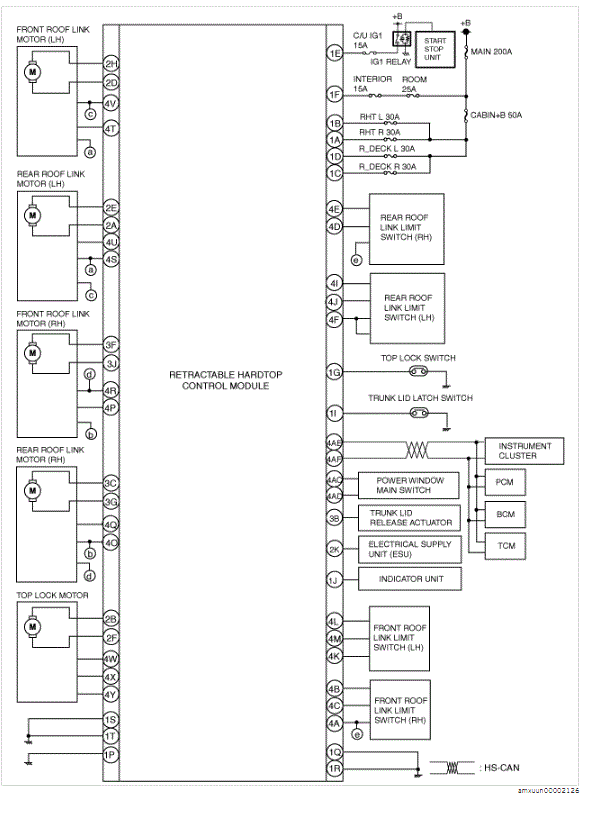

Fig 1: Retractable Fastback Control Module Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
