Passenger-Side Air Bag Module Removal/Installation [Two-Step Deployment Control System]

WARNING:
  • Handling the passenger-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the passenger-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] ). (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] ).
  • Due to the adoption of 2-step deployment control in the passenger-side air bag module, depending on the impact force, it is possible that inflator No. 2 might not deploy. In such cases, before disposing of the air bag module, make sure to follow the inflator deployment procedures and verify complete deployment of inflators No. 1 and 2.
  1. Switch the ignition off.
  2. Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
  3. Remove the following parts:
    1. Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    3. Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION ).
    4. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION ).
  4. Remove the screw.

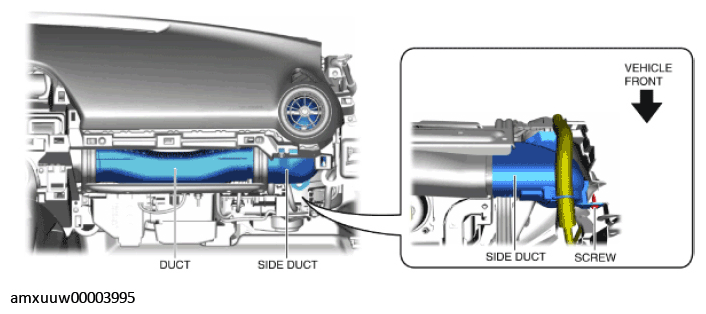

    Fig 1: Removing Side Duct And Screw
    G11276624Courtesy of MAZDA MOTORS CORP.
  5. Remove the side duct.
  6. Remove the duct.
  7. Remove the following parts:
    1. Auto leveling control module (without adaptive front lighting system (AFS)) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION ).
    2. Adaptive front lighting system (AFS) control module (with adaptive front lighting system (AFS)) (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION ).
    3. Air mix actuator. (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] ).(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] ).
  8. Remove the bolt.

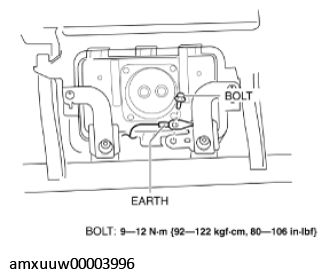

    Fig 2: Removing Earth And Bolt
    G11276625Courtesy of MAZDA MOTORS CORP.
  9. Remove the earth.
  10. Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

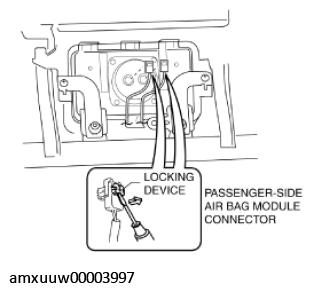

    Fig 3: Lifting Locking Device Using Flathead Screwdriver
    G11276626Courtesy of MAZDA MOTORS CORP.
  11. Disconnect the passenger-side air bag module connectors.
  12. Remove the screws.

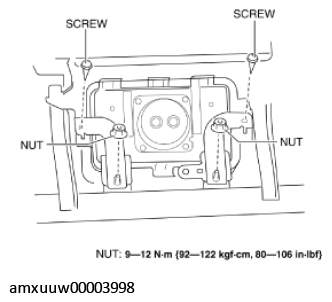

    Fig 4: Removing Passenger-Side Air Bag Module Screws And Nuts
    G11276627Courtesy of MAZDA MOTORS CORP.
  13. Remove the nuts.
  14. Move the passenger-side air bag module in the direction of arrow (2) shown in the figure and detach guide A from the air bag case while spreading the air bag case in the direction of arrow (1).

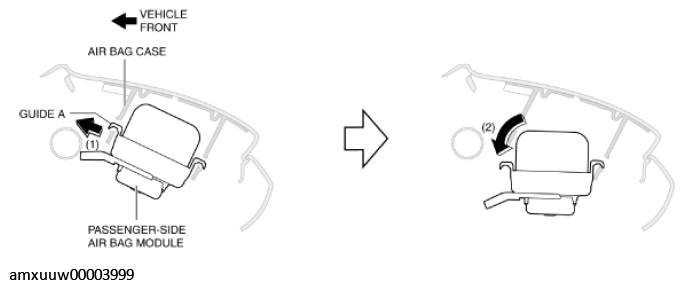

    Fig 5: Detaching Guide A From Air Bag Case
    G11276628Courtesy of MAZDA MOTORS CORP.
  15. Move the passenger-side air bag module in the direction of the arrow (3) and detach guides B from the air bag case.

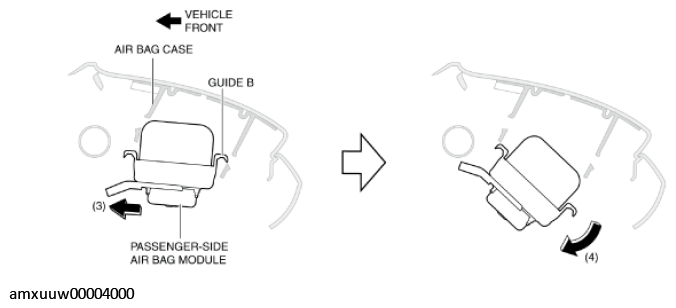

    Fig 6: Detaching Guides B From Air Bag Case
    G11276629Courtesy of MAZDA MOTORS CORP.
  16. Move the passenger-side air bag module in the direction of the arrow (4), and remove the passenger-side air bag module.
  17. Install in the reverse order of removal.
  18. Switch the ignition ON (engine off or on).
  19. Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
