| System malfunction location |
- B0010:11: Passenger-side air bag module (inflator No. 1) circuit short to body ground
- B0010:12: Passenger-side air bag module (inflator No. 1) circuit short to power supply
- B0010:13: Passenger-side air bag module (inflator No. 1) circuit open circuit or resistance high
- B0010:19: Short circuit to passenger-side air bag module (inflator No. 1) and other air bag module circuits
- B0010:1A: Passenger-side air bag module (inflator No. 1) circuit resistance low
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Resistance other than 0.88-6.33 ohms detected in passenger-side air bag module (inflator No. 1) circuit

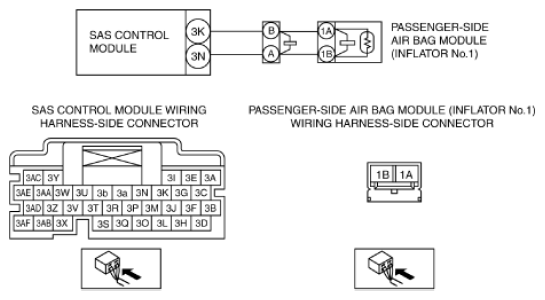

- Wiring harness between passenger-side air bag module (inflator No. 1) and SAS control module has malfunction
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Passenger-side air bag module (inflator No. 1) connector malfunction
- Short circuit to power supply or body ground in the wiring harness between the passenger-side air bag module (inflator No. 1) and SAS control module
- Open circuit in the wiring harness between the passenger-side air bag module (inflator No. 1) and SAS control module
- Passenger-side air bag module (inflator No. 1) malfunction
- SAS control module malfunction
|
