| System malfunction location |
- B00D5:01:PAD indicator circuit open circuit or short to power supply
- B00D5:29:PAD indicator communication error
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Malfunction in PAD indicator circuit
- PAD signal mismatch
|
| Fail-safe |
Not applicable |
| Possible cause |
- Instrument cluster malfunction
- SAS control module connector malfunction
- Instrument cluster connector malfunction

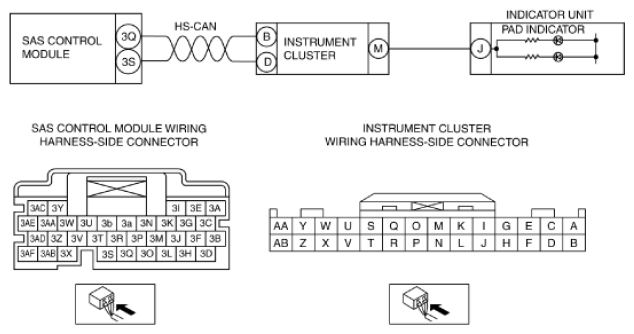

- Short circuit to power supply or body ground in the wiring harness between Instrument cluster and SAS control module
- Open circuit in the wiring harness between Instrument cluster and SAS control module
- SAS control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
