DTC B109E-29: Communication Error Between Body Control Module (BCM) And LF Control Unit (BCM): Outline

DTC B109E:29 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Communication error between body control module (BCM) and LF control unit
Detection condition	The body control module (BCM) detects the communication error with the LF control unit.
Fail-safe	Not applicable
Possible cause	LF control unit connector or terminal malfunction Body control module (BCM) connector or terminal malfunction Short to ground in LF control unit signal circuit Open circuit in LF control unit signal circuit LF control unit malfunction Body control module (BCM) malfunction

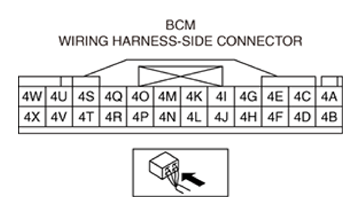

Courtesy of MAZDA MOTORS CORP.

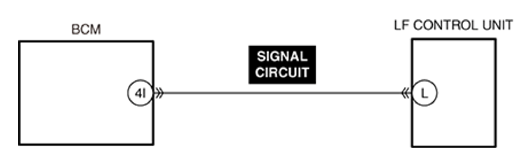

Courtesy of MAZDA MOTORS CORP.

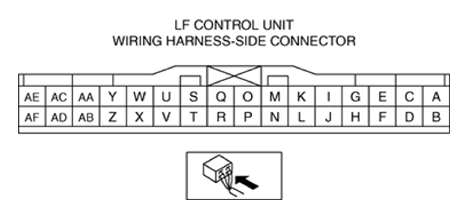

Courtesy of MAZDA MOTORS CORP.
