DTC B1207-86: Communication Error With SAS Control Module (Telematics Communication Unit): Outline

DTC B1207:86 (TELEMATICS COMMUNICATION UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location Communication error with SAS control module
Detection condition
  • The telematics communication unit received invalid event notification signal 2 or could not receive any event notification signal 2 from SAS control module.
Fail-safe
  • Not applicable
Possible cause
  • DTCs are stored in the SAS control module.
    • SAS control module malfunction
  • SAS control module connector or terminal malfunction
  • Telematics communication unit connector or terminal malfunction
  • Open circuit in SAS control module signal circuit
  • Telematics communication unit malfunction

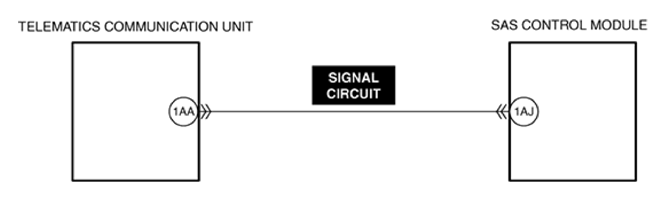

G13178355Courtesy of MAZDA MOTORS CORP.

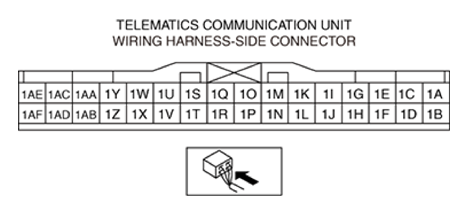

G13178356Courtesy of MAZDA MOTORS CORP.

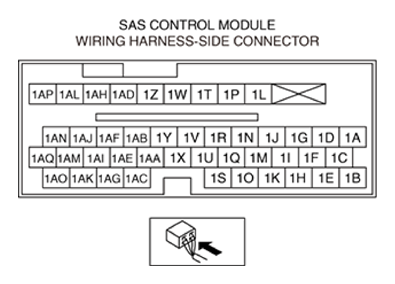

G13178357Courtesy of MAZDA MOTORS CORP.
