Operation Using Remote Transmitter Button Not Possible [Security And Locks]: Outline

OPERATION USING REMOTE TRANSMITTER BUTTON NOT POSSIBLE [SECURITY AND LOCKS] DETECTION CONDITION AND POSSIBLE CAUSE

Description
  • The door lock/unlock operation using the remote transmitter button is not possible.
  • The trunk open operation using the remote transmitter button is not possible.
Possible cause
  • Remote transmitter malfunction
  • Effect of non-standard equipment (any control unit with built-in micro computer such as radio set, mobile telephone, and TV)
  • Connector or terminal malfunction of the following parts:
    • Keyless receiver
      • LF control module
  • Short to ground or open circuit in keyless receiver signal circuit
  • Keyless receiver malfunction
  • LF control unit malfunction
G13178398Courtesy of MAZDA MOTORS CORP.

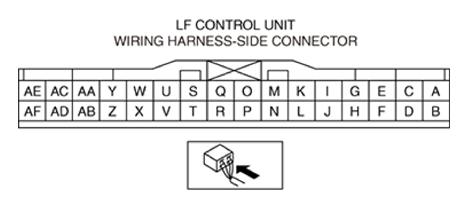

G13178399Courtesy of MAZDA MOTORS CORP.
G13178400Courtesy of MAZDA MOTORS CORP.
