Structural View (Exterior)

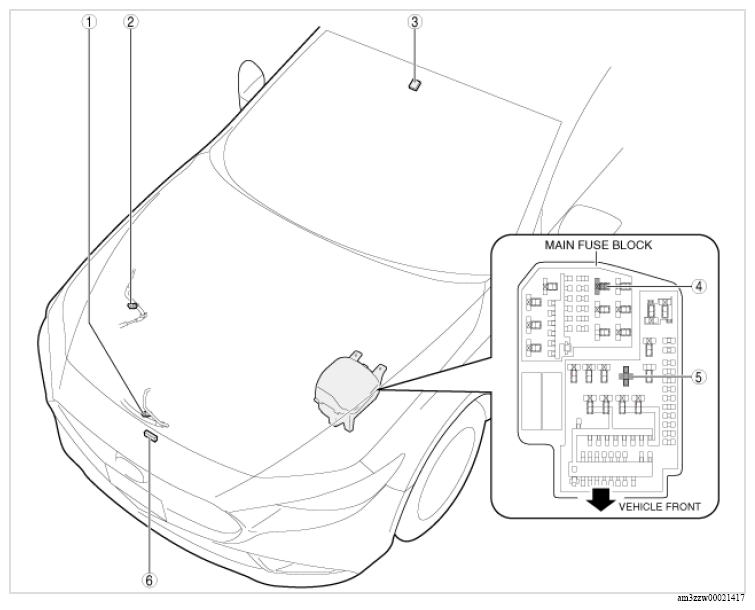

COMPONENT DESCRIPTION
| 1 | Refrigerant pressure sensor No. 2 (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C (US)) .) (See REFRIGERANT PRESSURE SENSOR INSPECTION (MANUAL A/C (US)) .) |
| 2 | Refrigerant pressure sensor No. 1 (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C (US)) .) (See REFRIGERANT PRESSURE SENSOR INSPECTION (MANUAL A/C (US)) .) |
| 3 | Solar radiation sensor (with solar radiation sensor)/humidity sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See SOLAR RADIATION SENSOR INSPECTION (MANUAL A/C) .) (See HUMIDITY SENSOR REMOVAL/INSTALLATION (MANUAL A/C) .) |
| 4 | A/C relay (See RELAY LOCATION [(US)] .) (See RELAY INSPECTION ) |
| 5 | Blower relay (See RELAY LOCATION [(US)] .) (See RELAY INSPECTION .) |
| 6 | Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AMBIENT TEMPERATURE SENSOR INSPECTION (MANUAL A/C) .) |
