Setting Method By Operation Of Remote Transmitter Button

The following setting can be changed by operation of the remote transmitter button.

Function

Initial Setting

Setting Content

Control Unit

2-step unlocking function.⁽¹⁾

ON

OFF/ON

Start stop unit

⁽¹⁾	With 2-step unlocking function.

Change the setting for the 2-step unlocking function referring to the following procedure:
NOTE:
- If any of the following conditions is met during procedure, the setting for changing the keyless beeper volume is finished.
  - The ignition is switched to ACC or ON (engine off or on).
  - The driver's door is closed.
  - The trunk lid is open.
  - The remote transmitter operation is not performed for approx. 10 s.
  - The lock button on the remote transmitter is pressed.
  - A request switch is pressed.

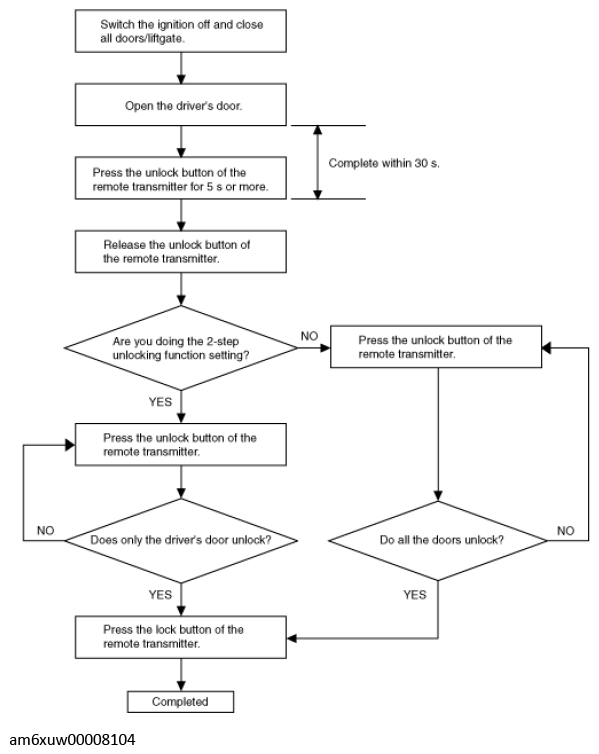

Fig 1: 2-Step Unlocking Function Setting Changing Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
