Start Stop Unit Installation Note

  1. Temporarily install the start stop unit to the steering shaft using new start stop unit installation bolts.
  2. Tighten the start stop unit installation bolts until the heads break off.

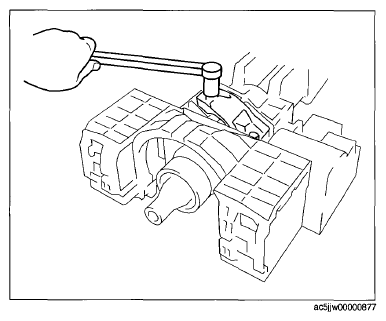

Fig 1: Tightening Start Stop Unit Installation Bolts
G09075666Courtesy of MAZDA MOTORS CORP.
