Parking Sensor System Does Not Operate (Parking Sensor System): Notes

NOTE:
  • If there is any vehicle malfunction complaint lodged by a customer, perform FORWARD (PARKING SENSOR SYSTEM) malfunction diagnosis according to the troubleshooting procedure. (See FORWARD (PARKING SENSOR SYSTEM) .)
PARKING SENSOR SYSTEM DOES NOT OPERATE DESCRIPTION AND POSSIBLE CAUSE

Item PARKING SENSOR SYSTEM DOES NOT OPERATE
Description
  • Even if the parking sensor switch is turned on, the parking sensor buzzer is not activated.
Possible Causes
  • Control is inhibited because the trailer switch (option) is installed on the vehicle and the trailer switch (option) is turned on.
  • Short circuit to ground in the circuit between parking assist unit terminal R and the trailer switch (option)
  • Cluster switch connector or terminal malfunction
  • Parking assist unit connector or terminal malfunction
  • Short to ground in wiring harness between the following terminals:
    • Cluster switch terminal A-Parking assist unit terminal V
  • Cluster switch malfunction
    • Parking sensor switch malfunction
  • Parking assist unit malfunction

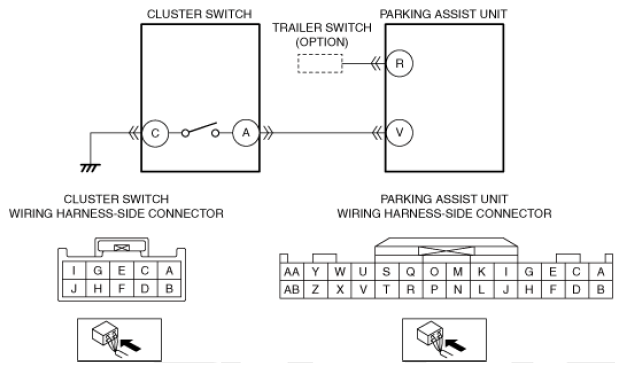

G12235938Courtesy of MAZDA MOTORS CORP.
