DTC P025C-00: Fuel Pump Control Module Result Of On-Board Diagnostic Test Low Input: Notes

DTC P025C-00 PCM (SKYACTIV-G 2.5T) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P025C-00	FUEL PUMP CONTROL MODULE RESULT OF ON-BOARD DIAGNOSTIC TEST LOW INPUT
DETECTION CONDITION	Result of on-board test cannot be received from fuel pump control module (voltage is too low). Diagnostic support note This is a continuous monitor (CCM). The check engine light does not illuminate. FREEZE FRAME DATA is not available. Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Not applicable

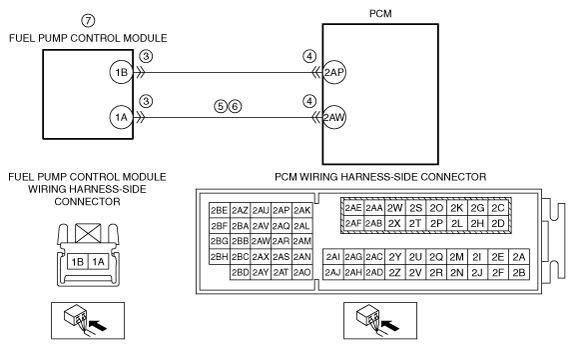

POSSIBLE CAUSE	Fuel pump control module connector or terminals malfunction PCM connector or terminals malfunction Short to ground in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AW Open circuit in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AW Fuel pump control module malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
