DTC P061F-00: Internal Control Module Throttle Valve Actuator Controller Performance Problem: Notes

DTC P061F-00 PCM (SKYACTIV-G 2.5T) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P061F-00	INTERNAL CONTROL MODULE THROTTLE VALVE ACTUATOR CONTROLLER PERFORMANCE PROBLEM
DETECTION CONDITION	When any of the following conditions is met: Start stop unit internal malfunction CAN communication line malfunction between start stop unit and PCM PCM internal malfunction Diagnostic support note This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA is not available. Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Not applicable

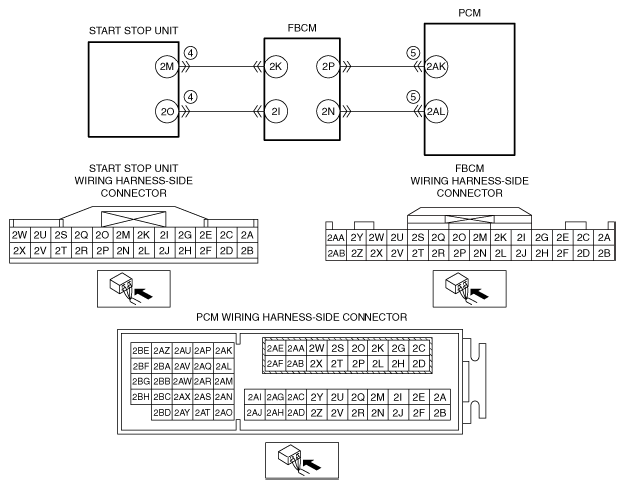

POSSIBLE CAUSE	CAN communication line malfunction between start stop unit and PCM Start stop unit terminal 2M-Front body control module (FBCM) terminal 2K Start stop unit terminal 2O-Front body control module (FBCM) terminal 2I Front body control module (FBCM) terminal 2P-PCM terminal 2AK Front body control module (FBCM) terminal 2N-PCM terminal 2AL Start stop unit connector or terminals malfunction PCM connector or terminals malfunction Start stop unit malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
