Spacer, Rubber and EPS Control Module Installation Note
- Install the spacer and rubber to the steering column.

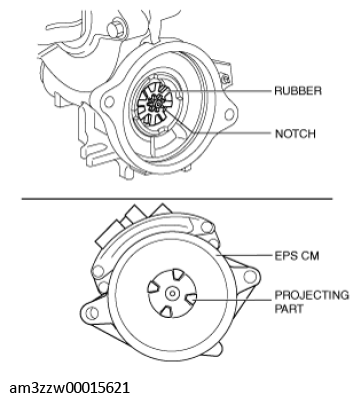

- Install the EPS Control Module so that the projecting part of the EPS Control Module (rotor) is engaged with the notch in the rubber.
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When assembling the EPS Control Module, be careful not to pinch the torque sensor harness. If the torque sensor harness is damaged, replace the steering column.
NOTE:
- If the projecting part of the EPS Control Module (rotor) is not engaged with the notch in the rubber, adjust the position of the EPS Control Module projection (rotor).
